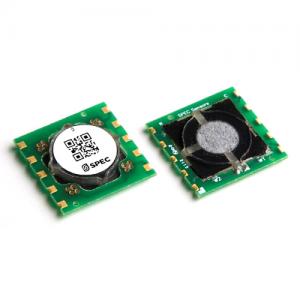

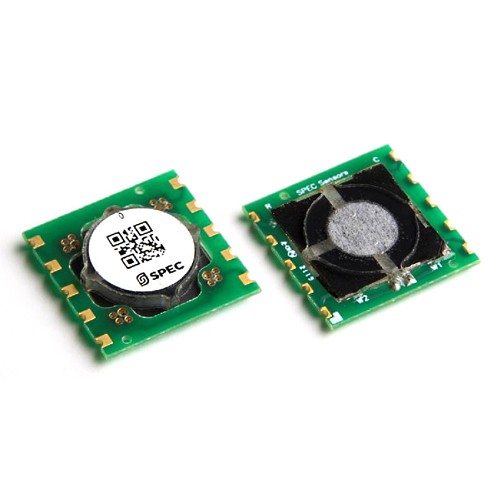

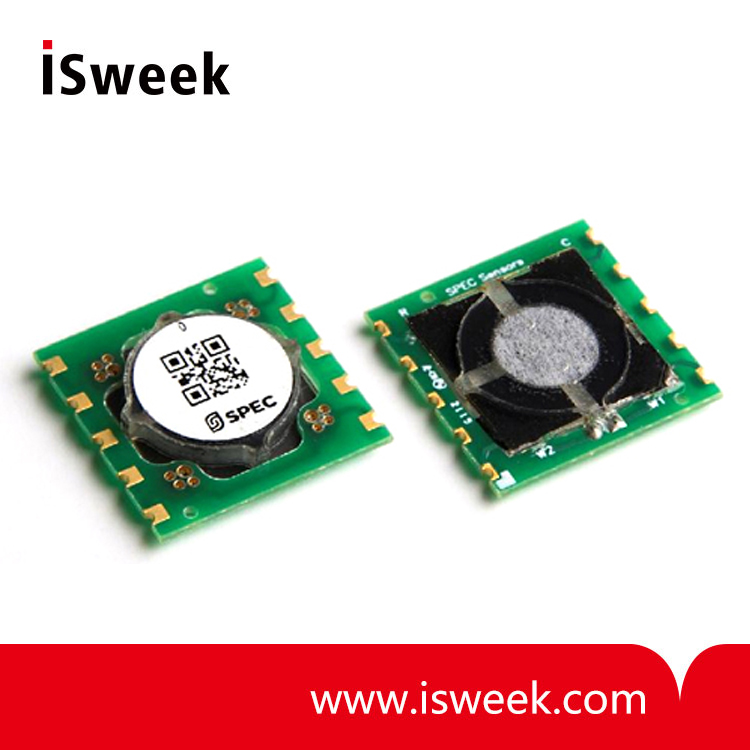

15x15 Carbon Monoxide Sensor 1000 ppm Package 110-109 - 3SP_CO_1000 C

? Measurement Range: 0 to 1,000 ppm
? Detection Limit: 0.5 ppm
? Resolution: < 100 ppb (instrumentation dependent)
? Repeatability: < ± 2 % of reading
? Response Time - T(90): < 30 seconds (15 seconds typical)
? Sensitivity: 4.75 ± 2.75 nA/ppm
? Power Consumption: 10 to 50 uW (circuit & ambient CO dependent)

Model Number: 3SP_CO_1000 C
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

3SP_CO_1000 C
15x15 CO Sensor 1000 ppm Package 110-109

3SP_CO_1000 C Carbon Monoxide Sensor (CO Sensor) Description
SPEC Sensors’ Screen Printed ElectroChemical sensor technology (SPEC Sensor?) revolutionizes the current state of the art, enabling new applications in consumer and industrial safety monitoring. SPEC’s printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price. SPEC’s printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

3SP_CO_1000 C Carbon Monoxide Sensor (CO Sensor) Benefits
? Small Size with Low Profile (20x20x3.8 mm)
? Long Life (10 years expected life)
? Fast Response (< 15 seconds)
? Robust (passes 5000 ppm overload)
? Low Power (0 mW @ 0 mV bias)
? Individually Calibrated (NIST Traceable)
? ROHS Compliant

3SP_CO_1000 C Carbon Monoxide Sensor (CO Sensor) Applications
? Residential and Commercial CO Monitoring
? Industrial CO Monitors
? Ventilation Control
? RV and Marine CO Monitoring
? Indoor Air Quality
? Outdoor Air Quality

3SP_CO_1000 C Carbon Monoxide Sensor (CO Sensor) Specifications

Measurement Range	0 to 1,000 ppm
Detection Limit	0.5 ppm
Resolution	< 100 ppb (instrumentation dependent)
Repeatability	< ± 2 % of reading
Response Time - T(90)	< 30 seconds (15 seconds typical)
Sensitivity	4.75 ± 2.75 nA/ppm
Overload	Passes EN20291-1 Sec. 5.3.6 5,000 ppm overload
Expected Operating Life	> 5 years (10 years @ 23 ± 3 °C; 40 ± 10% RH)
Operating Temperature Range	-30 to 55 °C (-20 to 40 °C continuous recommended)
Operating Humidity Range- non-condensing	15 to 95% recommended continuous 0 to >95% RH - intermittent
Operating Bias	0 to 5 mV
Power Consumption	10 to 50 uW (circuit & ambient CO dependent)

3SP_CO_1000 C Carbon Monoxide Sensor (CO Sensor) Cross Sensitivity
Most chemical sensors exhibit some cross-sensitivity to other gases. The following table lists the relative response of common potential interfering gases, and the concentration at which the data was gathered.

Gas/Vapor	Concentration	Typical Response PPM CO
Carbon Dioxide	5,000 ppm	< 1
Hydrogen	100 ppm	17
Methane	3,000 ppm	< 1
Ammonia	100 ppm	< 1
Nitrogen Dioxide	10 ppm	< 1
Hydrogen Sulfide	25 ppm	< 1
Carbon Monoxide	400 ppm	400
Ozone	5 ppm	< 1
Sulfur Dioxide	20 ppm	< 1
Chlorine	10 ppm	< 1
n-Heptane	500 ppm	< 1
Toluene	200 ppm	< 1
Isopropyl Alcohol	200 ppm	1.3
Acetone	200 ppm	< 1
