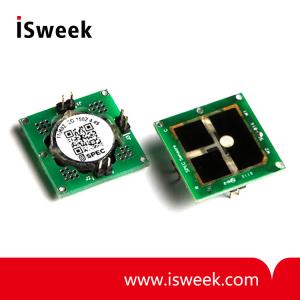

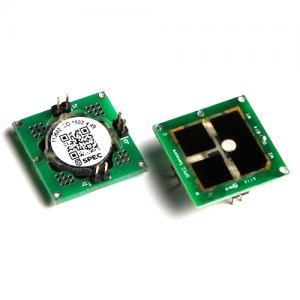

15x15 Ozone Sensor O3 Sensor Pinned Package 110-406 - 3SP_O3_20 P

? Measurement Range: 0 to >20 ppm
? Lower Detectable Limit: < 20 ppb
? Resolution?: < 20 ppb
? Small Size with Low Profile: (20x20x3 mm)
? Long Life: 10 years expected life)
? Fast Response: < 15 seconds
? Low Power Consumption
? ROHS Compliant

Model Number: 3SP_O3_20 P
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

3SP_O3_20 P Ozone Sensor O3 Sensor Description
SPEC's printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price. SPEC's printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions. These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

3SP_O3_20 P Ozone Sensor O3 Sensor Benefits
? Small Size with Low Profile (20 x 20 x 3 mm)
? Long Life (10 years expected life)
? Fast Response (< 15 seconds)
? Low Power Consumption
? Individually Calibrated (NIST Traceable)
? ROHS Compliant

3SP_O3_20 P Ozone Sensor O3 Sensor Applications
? Air Quality Monitoring
? Industrial Safety
? Air Purification Control

3SP_O3_20 P Ozone Sensor O3 Sensor Specifications

Measurement Range	0 to >20 ppm
Lower Detectable Limit	< 20 ppb (instrumentation dependent)
Resolution	< 20 ppb (instrumentation dependent)
Response Time	< 15 seconds typical
Sensitivity nA/ppm @ 5ppm	-60 +/- 10 nA/ppm
Expected Operating Life	> 5 years (10 years @ 23+/-3°C; 40+/-10% RH)
Operating Temperature Range	-30 to 50°C (-20 to 40°C continuous)
Operating Humidity Range - non-condensing	0 to 100% RH (15 to 95% continuous)
Power Consumption	10 to 50 uW (circuit & ambient O3 dependent)

3SP_O3_20 P Ozone Sensor O3 Sensor Cross Sensitivity

Gas/Vapor	Concentration	Typical Response PPM O3
Methane	500 ppm	< 0.05
Nitrogen Dioxide	5 ppm	5
Hydrogen Sulfide	25 ppm	-12.5
Carbon Monoxide	400 ppm	< 0.05
Ozone	5 ppm	5
Chlorine	10 ppm	10
n-Heptane	500 ppm	-0.2
