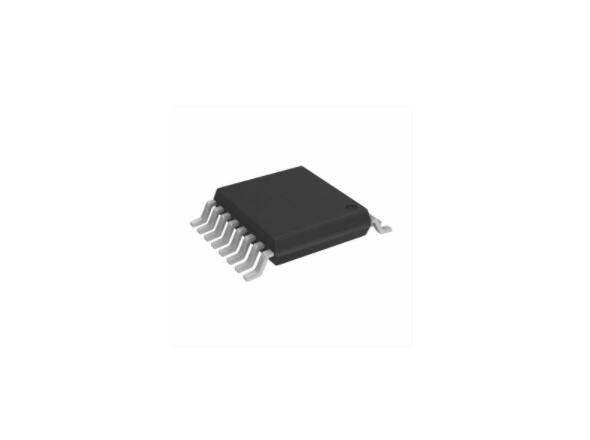

ADC IC - CJC5357B
?Stereo Δ-Σ ADC
On-chip digital anti-alias filter
Single-ended input
Digital high-pass filter to eliminate DC offset
S/(N+D):84dB@3.3V for 48kHz
- Model Number: CJC5357B
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The CJC5357B is a sampling rate 4KHz ~ 96KHz stereo ADC, it is suitable for multi-media audio systems. CJC5357B with enhanced dual-bit -Σ technology, owns high precision and low power consumption properties. Because it is a single-ended input devices, there is no need for additional devices. The audio interface supports two formats (MSB justified, I2S), and can be used in a variety of systems, such as karaoke OK, surround sound and so on.
Features：
Stereo Δ-Σ ADC
On-chip digital anti-alias filter
Single-ended input
Digital high-pass filter to eliminate DC offset
S/(N+D):84dB@3.3V for 48kHz
DR:
99dB@3.3V for 48kHz
98dB@3.3V for 96kHz
S/N:
99dB@3.3V for 48kHz
98dB@3.3V for 96kHz
Sampling Rate: 4kHz ～ 96kHz
Master Clock:256fs/384fs/512fs/768fs (4kHz~48kHz)
256fs/384fs(48kHz~96kHz)
CMOS Input Level
Master/Slave mode
Audio Interface: 24bit MSB justifed/I2S is optional .
Power Supply: 2.7 to3.6V
Ta= —40~ 85℃（industrial）, Ta=—20~85℃（commercial）
Package:16pin TSSOP
Application：
Speaker box
Headphones
Sound
Sonic blaster
IPC
Story machine
