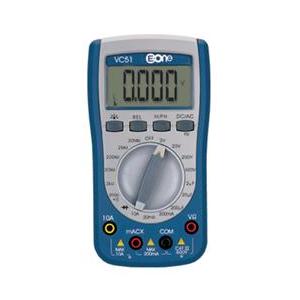

All Ranges Protection Digital Multimeter - VC51
? 3 1/2 digit, Digital and Analog Dual display
? 17 measuring ranges
? Voltage/Current measurements
? Capacitance measurement
? Resistance measurement
? Diode and continuity tests
? mA/Cx range,Self-restoring electronic protect
- Model Number: VC51
- Quantity:
- - +
Product Specification
VC51 Digital Multimeter General Feature
? 3 1/2 digit, Digital and Analog Dual display
? 17 measuring ranges
? Voltage/Current measurements
? Capacitance measurement
? Resistance measurement
? Diode and continuity tests
? mA/Cx range,Self-restoring electronic protect
? Voltage/Current range--Frequency measurements one-key exchange
? Data hold /Max recording /REL
? Auto delay shut-down, white backlight display
VC51 Digital Multimeter Accessories
1 x Test lead set, 1 x Zip oxford bag, 10A current adapter,
3 x AAA batteries, 1 x user's manual
Dimension: 148 x 78 x 35mm
Weight: 250g (include batteries)
VC51 Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
2V/20V/200V/600V |
100μV |
±(1.0%+3d) |
|
AC Voltage |
2V/20V/200V/600V |
100μV |
±(1.0%+3d) |
|
DC Current |
20mA/200mA/10A |
10μA/10mA |
±(1.0%+3d) |
|
AC Current |
20mA/200mA/10A |
10μA/10mA |
±(1.5%+3d) |
|
Resistance |
200/2k/20k/200k/2M/20MΩ |
100mΩ |
±(0.8%+3d) |
|
Capacitance |
2μF/20μF/200μF |
1nF |
±(4%+3d) |
