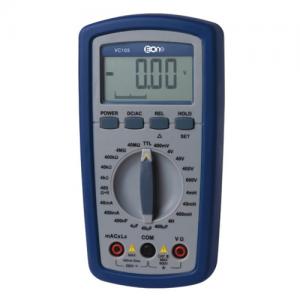

All Ranges Protection Self-restoring LCR Filter Digital Multimeter - VC103

Product Specification

VC103 Digital Multimeter General Feature

? 3 3/4 digits, Digital and Analog Dual display
? 22 measuring ranges
? Voltage/ current measurements
? Resistance measurement and Capacitance measurement
? Continuity test
? Inductance measurement, adopted the bridge circuit principle to reduce the inductance effect from the inner resistance.
? Self recover electronic protected circuit, no physical fuses required
? Splashed water protection, dustproof, 1.5 meter dropproof design
? Discretionary range can withstand the impulses (in excess of 250V), even including the current port
? AC/DC 1000V surge absorption
? Unique TTL logic test with bar graph displaying TTL electrical voltage level simultaneously.
? Upper/lower limit setting, convenient for the components sorting, with buzzer alarm to indicate the exceeded value.
? Data Hold /REL
? Auto power-off

VC103 Digital Multimeter Accessories

1 x Double-plastic test lead set, 1 x LCR test frame, 1 x zip oxford bag, 1 x 10A adapter, 1x user's manual

Dimension: 160 x 85 x .35mm

Weight: 450g (include batteries)

VC103 Digital Multimeter Measurement Range and Accuracy
