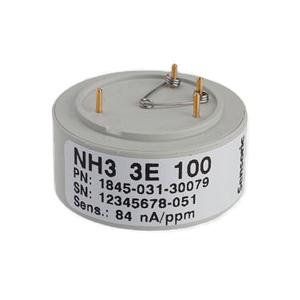

Ammonia Sensor (NH3 Sensor) - NH3 3E 100

? Measuring Range: 0-100 ppm
? Sensitivity Range: 90 nA/ppm ± 40 nA/ppm
? Zero Current at 20°C: < ± 150 nA
? Resolution at 20°C: < 2 ppm
? Bias Potential: 0 mV
? Linearity: <5% full scale
? Operation Temperature Range: -40°C to +40°C
? Operation Humidity Range: 15-90% r.H, non-condensing

  • Model Number: NH3 3E 100
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Ammonia Sensor (NH3 Sensor)
Mouse over image to zoom
Share:

Product Specification

NH3 3E 100 Ammonia Sensor (NH3 Sensor) FEATURES
? Amperometric 3 electrode sensor cell
? Fixed organic gel electrolyte
? No CO2 interference
? 0 volt bias operation

NH3 3E 100 Ammonia Sensor (NH3 Sensor) TYPICAL APPLICATIONS
? TLV-monitoring, leakage detection
? Fixed point applications in cold storages & refrigeration plants only
? For other applications please use NH3 3E SE versions
? No background concentrations of ammonia & alcohols

NH3 3E 100 Ammonia Sensor (NH3 Sensor) TECHNICAL SPECIFICATIONS

Measuring Range
0-100 ppm
Sensitivity Range
90 nA/ppm ± 40 nA/ppm
Zero Current at 20°C
< ± 150 nA
Resolution at 20°C
< 2 ppm
Bias Potential
0 mV
Linearity
<5% full scale
Response Time at 20°C
    t50
    t90

<20s    calculated from 5 min. exposure time
<120s  calculated from 5 min. exposure time
Long Term Sensitivity Drift
<10% per 6 months
Operation Conditions
    Temperature Range
    Humidity Range

-40°C to +40°C
15-90% r.H, non-condensing
Effect of Humidity
an abrupt change of r.H. will cause a
short term drift of zero reading
Sensor Life Expectancy
> 18 months in air
Warranty
12 months

Safety Note
This sensor is designed to be used in safety critical applications. To ensure that the sensor and/or instrument in which it is used, are operating properly, it is a requirement that the function of the device is confirmed by exposure to target gas (bump check) before each use of the sensor and/or instrument. Failure to carry out such tests may jeopardize the safety of people and property.
