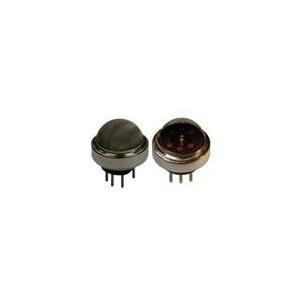

Ammonia Sensor - TGS826

The TGS826 has high sensitivity to ammonia gas. The sensor can detect concentrations as low as 30ppm in the air and is ideally suited to critical safety-related applications such as the detection of ammonia leaks in refrigeration systems and ammonia detection in the agricultural field.

  • Model Number: TGS826
Quantity:
- +
  • Ammonia Sensor
Mouse over image to zoom
Share:

Product Specification

Features:

* High sensitivity to ammonia
* Quick response to low concentrations of ammonia
* Uses simple electrical circuit
* Ceramic base resistant to severe environment


Applications:

* Ammonia leak detection in refrigerators
* Ventilation control for the agricultural and poultry industries





Specifications

Target gases Ammonia
Typical detection range 30-300ppm
Sensing principle MOS type
Driving voltages Heater Voltage:5.0V
Circuit Voltage:Max24V
Power consumption 833mW
Dimensions φ19.5×16.5mm
Weight Approx. 7.7g




The sensing element of TGS826 is a metal oxide semiconductor which has low conductivity in clean air. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
The TGS826 has high sensitivity to ammonia gas. The sensor can detect concen-trations as low as 30ppm in the air and is ideally suited to critical safety-related applications such as the detection of ammonia leaks in refrigeration systems and ammonia detection in the agricultural field.

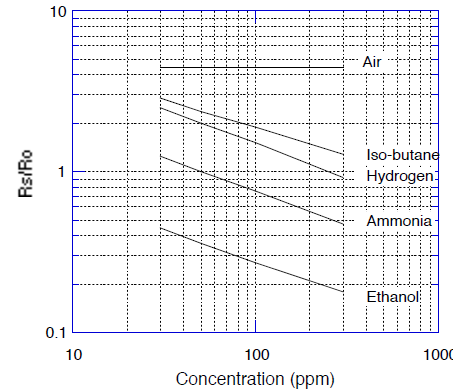

The figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis is indicated as sensor resistance ratio (Rs/Ro) which is defined as follows:
Rs = Sensor resistance of displayed gases at various concentrations
Ro = Sensor resistance at 50ppm of ammonia


Sensitivity Characteristics:

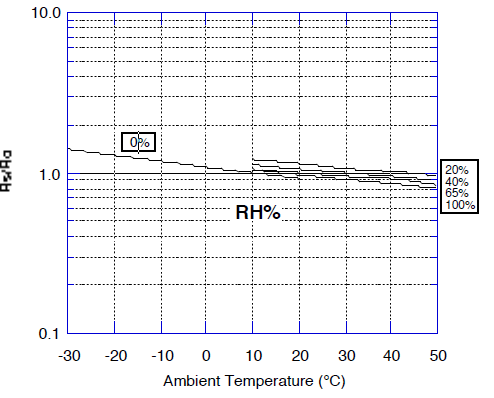

The figure below represents typical temperature and humidity dependency characteristics. Again, the Y-axis is indicated as sensor resistance ratio (Rs/Ro), defined as follows:
Rs = Sensor resistance at 50ppm of ammonia
at various temperatures/humidities
Ro = Sensor resistance at 50ppm of ammonia
at 20°C and 65% R.H.


Temperature/Humidity Dependency:
