Analog IC - iML6602
Input Supply Voltage Range: 4.5V to 26V
Support large output power:
-2×30W into a 8Ω BTL load at 24 V
-1×60W into a 4Ω PBTL load at 24 V
22mA Low Quiescent Current at 24V in
Highly Efficient Mode with Recommended LC filter
- Model Number: iML6602
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The iML6602 is a high efficiency stereo Class-D audio amplifier and have very low idle power loss in Highly Efficient Mode (HEM) which helps to extend the battery life. The high efficiency allows it can support 2 × 30 W without external heat sink on a dual layer PCB.
The device provides Parallel BTL application can deliver 60W into 4Ω load at 24V supply voltage.
The iML6602 employs a switching frequency option 300-KHz and 350K+-15% SSM to reduce EMI, which is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices.
The adjustable power limit function allows to set the PLIMIT voltage rail to limit the amount of current through the speaker. This device is fully protected includes UVLO, OVP, OTP, DC Protection and short-circuit protection.
FEATURES：
Input Supply Voltage Range: 4.5V to 26V
Support large output power:
-2×30W into a 8Ω BTL load at 24 V
-1×60W into a 4Ω PBTL load at 24 V
22mA Low Quiescent Current at 24V in
Highly Efficient Mode with Recommended LC filter
High Power Efficiency ：up to 94%
Highly Efficient Mode (HEM): very low idle power loss without deteriorating the THD
Low output offset voltage: 1.5mV
Low EMI with spread spectrum modulation
Low THD: 0.01%@1W@8ohm@24V
300-KHz and 350K+-15% SSM Switching Frequency
Master and Slave Synchronization
Programmable Power Limit
Parallel BTL Mode Support
Single and Dual Power Supply Support
DC-Detect, and Short Circuit with Error Reporting
Undervoltage and Overvoltage Protection (UVLO and OVP)
Thermal Shutdown (OTP)

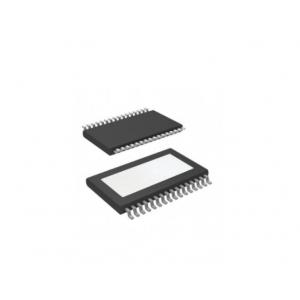

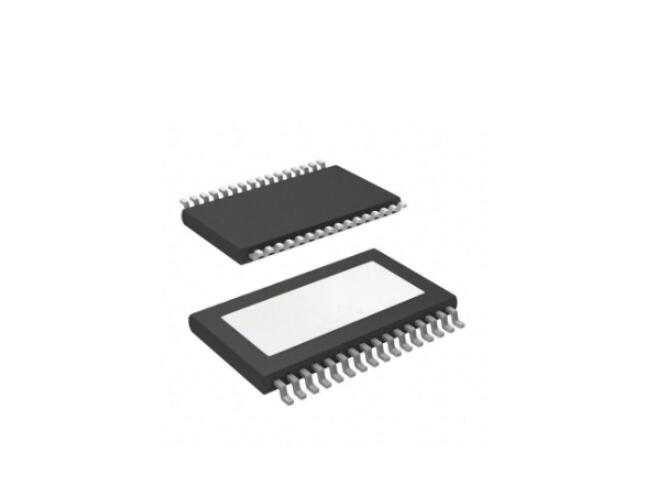

Package HTSSOP-32 with pad down
APPLICATIONS：
Soundbars
Bluetooth Speaker
TV audio
Home Theaters
