Anti-interference Methane Sensor CH4 Sensor - MQ-K10

Product Specification

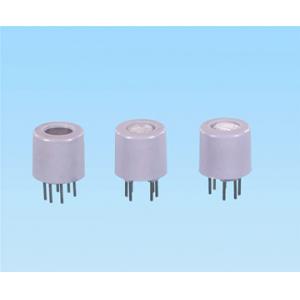

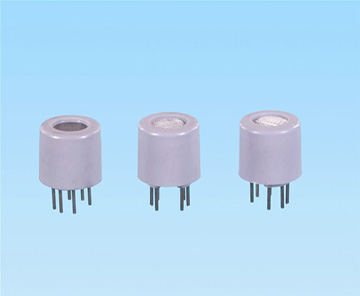

Anti-interference Methane Sensor CH4 Sensor MQ-K10

?

Specification:

MQ-K10 gas sensors used in gas sensing material is tin oxide (SnO2), low conductivity in clean air. When a methane gas sensor in the environment, the sensor's conductivity increases with the air of methane gas concentrations increase. Using a simple circuit to the conductivity change is converted to output signals corresponding to the concentration of the gas.MQ-K10 gas sensor also good at anti-interference, even put it in 2000ppm alcohol gas environment, its not influence at all, is a suitable low- cost sensors to a variety of applications.

Character:

1. Good sensitivity to methane gas

2. High anti-interference ability

3. Long life and low cost

4. Simple drive circuit

Application:

1. Domestic gas leakage detector

2. Industrial gas detector

3. Portable gas detector

Technical Parameter:

Gas: Methane Gas
Detection range: 300 to 10000ppm

Characteristic gas: 5000ppm Methane
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 1～50KΩ adjustable
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: <=150mA
Heating voltage: 5V
Measuring voltage: 5～50V
Operating Conditions Ambient temperature: -20～+55℃
???????????????????????? Humidity: ≤ 95% RH
???????????????????????? Environmental oxygen content: 21%
Storage conditions Temperature: -20～+70℃?

??????????????????????? ???Humidity: ≤ 70% RH
