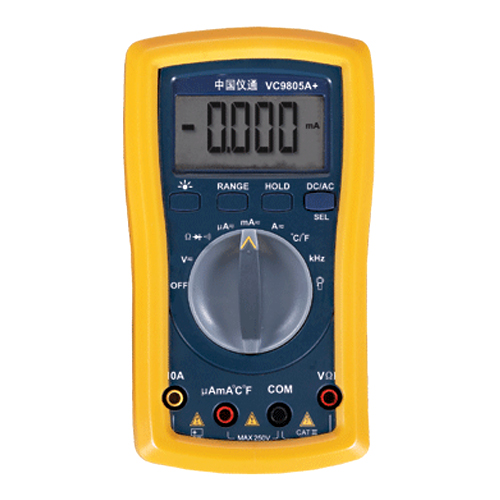

Auto-range/Frequency Digital Multimeter - VC9805A+
? 3 3/4 digit display, 2000 count resolution
? Temperature measuring with K-type temperature probe (℃/℉)
? 20KHz Frequency measurement
? Electrical protection, no fuse change
? Data hold and backlight diaplay
? Auto power off
- Model Number: VC9805A+
- Quantity:
- - +
Product Specification
VC9805A+ Digital Multimeter General Feature
? 3 3/4 digit display, 2000 count resolution
? Temperature measuring with K-type temperature probe (℃/℉)
? 20KHz Frequency measurement
? Electrical protection, no fuse change
? Data hold and backlight diaplay
? Auto power off
VC9805A+ Digital Multimeter Accessories
ET-01B test leads, Holster against shocked, user's manual
VC9805A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Accuracy |
|
DC voltage |
200V~600V |
±(0.2%+3d) |
|
AC voltage |
200mV~600V |
±(0.5%+3d) |
|
DC current |
2mA~200mA/10A |
±(0.8%+3d) |
|
AC current |
2mA~200mA/10A |
±(1.2%+3d) |
|
Resiastance |
200Ω~20MΩ |
±(0.5%+3d) |
|
Capacitance |
2μF~200μF |
±(2.5%+5d) |
|
TEM(℃/°F) |
-40℃~400℃ |
±(1.0%+5d) |
