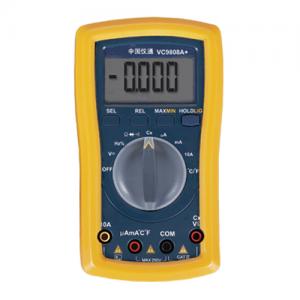

Auto-range / Temperature Digital Multimeter - VC9808A+
? 3 5/6 digit display,6000 count resolution
? Teperature measuring with K-type temperature probe(℃/℉)
? Full protection, no fuse change
? Data hold
? Backlight display
? Auto shut-off
- Model Number: VC9808A+
- Quantity:
- - +
Product Specification
VC9808A+?Digital Multimeter General Feature
? 3 5/6 digit display,6000 count resolution
? Teperature measuring with K-type temperature probe(℃/℉)
? Full protection, no fuse change
? Data hold
? Backlight display
? Auto shut-off
VC9808A+?Digital Multimeter?Accessories
ET-01 test leads, shocked-resistanceholster, ?Temperature probe, user's manual
VC9808A+?Digital Multimeter?Measurement Range and Accuracy
|
Function |
Range |
Resoltion |
Accuracy |
|
DC voltage |
600V~1000V |
0.1mV |
±(1.0%+3d) |
|
AC voltage |
?60mV~750V |
?1mV |
?±(1.0%+3d) |
|
AC/DC current |
?600μA~2000μA ? |
?0.1μA |
?±(2.0%+3d) |
|
AC/DC current |
?60mA~200mA/10A |
?0.1μA |
?±(2.0%+3d) |
|
Resiastance |
600Ω~20MΩ |
0.1Ω |
±(1.0%+3d) |
|
Capacitance |
40nF~4000μF |
1pF |
±(5%+3d) |
|
?TEM(℃/°F) |
?-40℃~400℃ |
?1℃ |
±(2.5%+5d) |
|
?Diode |
yes |
Continuity |
yes? |
|
?Frequency |
?1MHz |
?Duty |
?0.1~99.9 |
