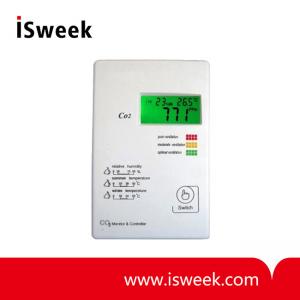

Carbon Dioxide (CO2) Ventilation Controller - G01-CO2-B360D

? Gas detected: Carbon Dioxide (CO2)
? Accuracy@25°C(77°F): ±60ppm + 3% of reading
? Stability: <2% of FS over life of sensor (10 yr typical)
? CO2 measuring range: 0~5,000ppm
? CO2 Display resolution: 1ppm
? Response Time: <2 minutes for 90% step change
? Temperature measuring range: 0~60°C(32~140°F)
? Humidity measuring range: 0~99%RH

  • Model Number: G01-CO2-B360D
  • Data Sheet: Date Sheet File
Quantity:
- +

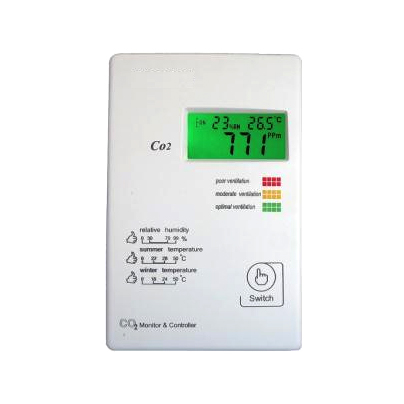

  • Carbon Dioxide (CO2) Ventilation Controller
  • Carbon Dioxide (CO2) Ventilation Controller
Mouse over image to zoom
Share:

Product Specification

Carbon Dioxide Ventilation Controller
Model: G01-CO2-B360D
CO2+Temperature and RH Detection with Two Stages Ventilation Control


    ? Real time carbon dioxide detection and control
    ? Temperature and humidity detection and display
    ? Three-color backlit LCD display CO2 three concentration ranges
    ? Provide 2xon/off outputs to control automatically two stages ventilation


G01-CO2-B360D Carbon Dioxide Ventilation Controller Features
? Design for real time detection and control air carbon dioxide.
? NDIR infrared CO2 sensor inside with special Self Calibration System. It makes the CO2 measurements more accurate and more reliable.
? Built in high accuracy digital temperature & RH sensor, real time monitoring ambient temperature & RH.
? More than 10 years lifetime of CO2 sensor.
? Three-color (green/yellow/red) LCD backlit changes automatically to indicate ventilation levels based on CO2 measurements: optimal/moderate/poor.
? Provide 2 x relay dry contact passive outputs to control 2 stages ventilation or two fans based on CO2 setpoints.
? CO2 setpoints can be preset by DIP switches easily.
? Specially design an Infrared remote controller for advanced parameters setup to meet different applications.
? High quality with the perfect appearance, the best choice for intelligent building and luxury residential.
? 100~240VAC power supply to be used in different regions.
? CE-Approval.


G01-CO2-B360D Carbon Dioxide Ventilation Controller Application

This CO2 controller is used for real time detection ambiance CO2, temperature and humidity. It automatically controls two stages ventilation or two fans based on the CO2 measurements and CO2 setpoints. This CO2 controller has three-color LCD backlit and touch button for monitoring and operation.

Specially designed 100~240VAC range of power supply, can be used for different applications in different countries or regions.

  ? Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
  ? House, villa, office, meeting room, classroom and other rooms
  ? All ventilation systems


G01-CO2-B360D Carbon Dioxide Ventilation Controller Specifications

Gas detected
Carbon Dioxide (CO2)
Sensing element
Non-Dispersive Infrared Detector (NDIR)
Accuracy@25°C(77°F)
±60ppm + 3% of reading
Stability
<2% of FS over life of sensor (10 yr typical)
Calibration interval
ABC Logic Self Calibration Algorithm
NDIR life
>10 years
Response Time
<2 minutes for 90% step change
Signal update
Every 2 seconds
CO2 measuring range
0~5,000ppm
CO2 Display resolution
1ppm
Power supply
100~240VAC 50/60Hz
Consumption
3.7 W max. ; 2.6 W avg.
Temperature & Humidity sensor
High accuracy digital integrated temperature and humidity sensor
Temperature measuring range
0~60°C(32~140°F)
Humidity measuring range
0~99%RH
Relay max output
2×SPST, 5A/30VDC, 5A/275VAC
Each load: 150W, 1250VA
CO2 control output settings
two set points is selectable for the first relay:
≥800ppm ON , ≤700ppm OFF
≥1000 ppm ON, ≤ 900ppm OFF
two set points is selectable for the second relay:
≥1200ppm ON, ≤1100ppm OFF
≥1400 ppm ON, ≤1300ppm OFF
Infrared remote control (Optional)
Used for advanced parameter setup
Operation conditions
0~50°C(32~122°F); 0~95%RH, non condensing
Storage conditions
10~50°C(50~122°F); 5~95%RH, non condensing
Weight
210g
Dimensions
130mm(H) x 85mm(W) x 36.5mm(D)
Installation
65mm x 65mm or 2" x 4" wire box
Housing and IP class
PC/ABS fireproof plastic material, protection class: IP30
Standard
CE-Approval
