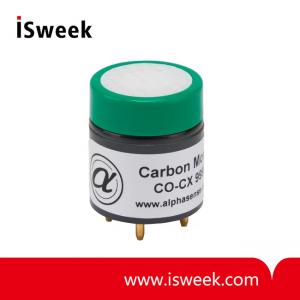

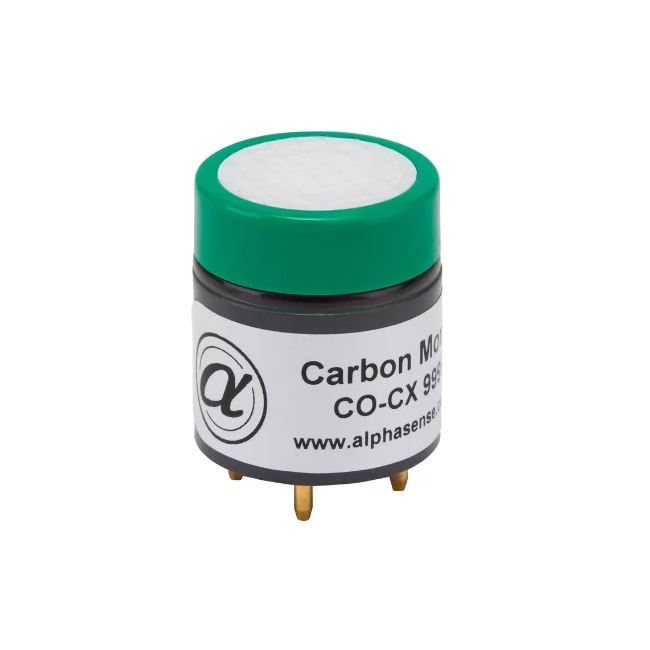

Carbon Monoxide Sensor EN 50379 Compliant for Stack Gases - CO-CX

? Range: 2,000 ppm CO limit of performance warranty
? Resolution: < 0.5 RMS noise (ppm equivalent)
? Sensitivity: 55 to 100 nA/ppm in 400ppm CO
? Response time t90: < 40 s from zero to 800ppm CO
? Temperature range: -30 to 50°C
? Pressure range: 80 to 120 kPa
? Humidity range: 15 to 90 % rh continuous
? Weight: < 8 g

  • Model Number: CO-CX
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Carbon Monoxide Sensor EN 50379 Compliant for Stack Gases
  • Carbon Monoxide Sensor EN 50379 Compliant for Stack Gases
Mouse over image to zoom
Share:

Product Specification

CO-CX Carbon Monoxide Sensor (CO Sensor) Description

Alphasense Carbon Monoxide gas sensors operate using proven fuel cell technology.

CO-CX Carbon (CO) Monoxide Sensor size:
20mm diameter with extra height for additional filter material when measuring combustion gases

The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology. The ‘X’ sensors have low hydrogen sensitivity, as drop-in replacements for the standard ‘F’ sensors.


CO-CX Carbon Monoxide Sensor (CO Sensor) PERFORMANCE
Sensitivity
nA/ppm in 400ppm CO
55 to 100
Response time
t90 (s) from zero to 800ppm CO
< 40
Zero current
ppm equivalent in zero air
< ± 3
Resolution
RMS noise (ppm equivalent)
< 0.5
Range
ppm CO limit of performance warranty
2,000
Linearity
ppm error at full scale, linear at zero and 800ppm CO
< ±40
Overgas limit
maximum ppm for stable response to gas pulse
4,000



CO-CX Carbon Monoxide Sensor (CO Sensor) LIFETIME
Zero drift
ppm equivalent change/year in lab air
< 0.2
Sensitivity drift
% change/year in lab air, monthly test
< 6
Operating life
months until 80% original signal (24 month warranted)
> 24



CO-CX Carbon Monoxide Sensor (CO Sensor) ENVIRONMENTAL
Sensitivity @ -20°C
% (output @ -20°C/output @ 20°C) @ 400ppm CO
50 to 85
Sensitivity @ 0°C
% (output @ 0°C/output @ 20°C) @ 400ppm CO
80 to 95
Sensitivity @ 40°C
% (output @ 40°C/output @ 20°C) @ 400ppm CO
100 to 125
Zero @ -20°C
ppm equivalent change from 20°C
< 0 to 4
Zero @ 0°C
ppm equivalent change from 20°C
< 0 to 3
Zero @ 50°C
ppm equivalent change from 20°C
< 0 to -10



CO-CX Carbon Monoxide Sensor (CO Sensor) CROSS SENSITIVITY
Filter capacity
ppm-hours H2S
250,000
Filter capacity
ppm-hours NO2
500,000
Filter capacity
ppm-hours NO
400,000
Filter capacity
ppm-hours SO2
250,000
H2    sensitivity
% measured gas @ 900ppm H2 in 900ppm CO @ 10°C
< 2
H2    sensitivity
% measured gas @ 900ppm H2 in 900ppm CO @ 20°C
< 5
H2    sensitivity
% measured gas @ 900ppm H2 in 900ppm CO @ 30°C
< 6
H2S  sensitivity
% measured gas @ 20ppm H2S
< 0.1
NO2  sensitivity
% measured gas @ 10ppm NO2
< 0.1
Cl2    sensitivity
% measured gas @ 10ppm Cl2
< 0.1
NO    sensitivity
% measured gas @ 50ppm NO
< 0.1
SO2   sensitivity
% measured gas @ 20ppm SO2
< 0.1
C2H4 sensitivity
% measured gas @ 400ppm C2H4
< 2
NH3   sensitivity
% measured gas @ 20ppm NH3
< 0.1



CO-CX Carbon Monoxide Sensor (CO Sensor) KEY SPECIFICATIONS
Temperature range
°C
-30 to 50
Pressure range
kPa
80 to 120
Humidity range
% rh continuous
15 to 90
Storage period
months @ 0 to 20°C (stored in sealed pot)
6
Load resistor
Ω (recommended)
10 to 47
Weight
g
< 8
