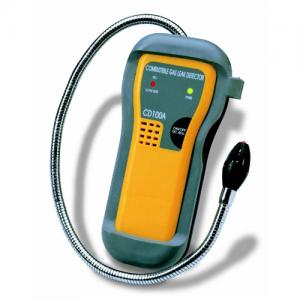

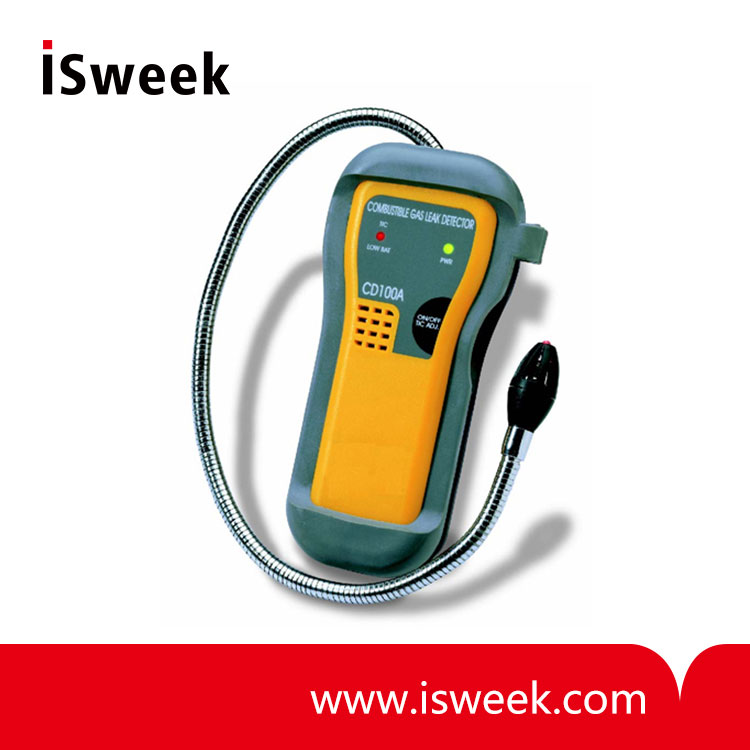

Combustible Gas Leak Detector - CD100A

? Power Supply: 9V Alkaline battery
? Battery life?: 5 hours typical use?
? Sensor?: Solid state semiconductor?
? Sensitivity: 50 ppm
? Dimensions?: 8" x 4" x 1.5" (200 x 100 x 38 mm)?
? Gooseneck: 18" (450mm)?
? Tick adjustment: Fully adjustable thumbwheel?

Model Number: CD100A
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CD100A Combustible Gas Leak Detector Description
The CD100A is designed to detect combustible gas leaks in residential and small commercial applications. It is small, easy to use and has a 18” long flexible gooseneck for hard to reach areas.

CD100A Combustible Gas Leak Detector Features
? Simple adjustable tick rate increases as the sensor tip approaches a leak
? Audio and visual tick rate, fully adjustable
? Easy one hand operation
? Long 18" (45cm) gooseneck for hard to reach areas
? 'Tip light' in sensor cover illuminates the area of the leak
? Rubber boot protects instrument
? Sensor provides accurate detection
? Headphone jack
? Separate battery compartment for quick and easy battery replacement

CD100A Combustible Gas Leak Detector Partial list of gases sensed:
Acetone, Alcohol, Ammonia, Benzene, Butane, Gasoline, Halon, Hyydrogen Sulfide, Industrial Solvents, Jet Fuel, Laquer Thinners, Methane, Naphta, Natural Gas, Propane, Refrigerants, Toluene ... and more

CD100A Combustible Gas Leak Detector Specifications

Power Supply	9V Alkaline battery
Battery life	5 hours typical use
Sensor	Solid state semiconductor
Sensitivity	50 ppm
Dimensions	8" x 4" x 1.5" (200 x 100 x 38 mm)
Gooseneck	18" (450mm)
Tick adjustment	Fully adjustable thumbwheel
Tick indication	Flashing LED
