Digital Gas Sensor Developer Kit - DGSDK 968-045

? Measurement Accuracy: 15% of reading?
? Measurement Repeatability: ± 3 % of reading?
? Recommended Warm-Up Time: 60 minutes from power applied to USB port?
? Operating Temperature Range?: -20 to 40°C
? Operating Humidity Range?: 15 to 95%
? Works with 3V supply
? Low power: 100 μW in standby mode
? Small form Factor (0.8 x 1.75 x 0.35")
? Lightweight (< 2 oz.)

Model Number: DGSDK 968-045
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

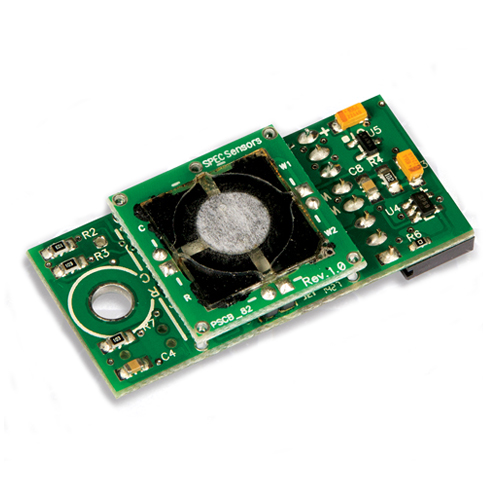

DGSDK 968-045 Digital Gas Sensor Developer Kit Description
SPEC Sensors is making it easy for Internet of Things developers to integrate gas sensing in their products. Carbon Monoxide Alarms, Air Pollution Monitoring, Indoor Air Quality, and Breath Analysis are some of the gas sensing applications that demand high performance measurement. Electrochemical gas sensing technology is the preferred solution for these applications due to measurement performance and the ultra-low power consumption needed for battery operation.

SPEC Sensors has overcome the physical size and mass market volume limitations that have constrained market adoption of electrochemical gas sensing in consumer products. The Digital Gas Sensor Developer Kit will allow OEMs to quickly integrate gas sensing into their application(s).

Digital Gas Sensor Platrform
? Works with 3V supply
? Low power: 100 μW in standby mode
? Outputs
Temperature
Relative Humidity
Gas Concentration
? Simple digital UART Interface
? ROHS compliant
? Small form Factor (0.8 x 1.75 x 0.35")
? Lightweight (< 2 oz.)

DGSDK 968-045 Digital Gas Sensor Developer Kit Applications
? Carbon monoxide safety alarms
? Air pollution monitoring
? Indoor air quality
? Breath analysis
? Generator control

DGSDK 968-045 Digital Gas Sensor Developer Kit Measurement Performance Characteristics

Gas	Range	Resolution (1)
Carbon Monoxide - CO	1000 ppm	100 ppb
Hydrogen Sulfide - H2S	10 ppm	10 ppb
Nitrogen Dioxide - NO2	5 ppm	<20 ppb
Sulfur Dioxide - SO2	20 ppm	50 ppb
Ozone - O3	5 ppm	<20 ppb
Ethanol - ETOH	800 ppm	300 ppb
Indoor Air Quality (combustion)	400 ppm (CO equivalent)	100 ppb
Respiratory Irritants	20 ppm (NO2 equivalent)	<20 ppb

NOTE 1: Based on Standard Deviation of noise at 0 ppm, 1 Hz measurement 60 second averaging

Based on Standard Conditions 25°C, 50%RH and 1 atm
Measurement Accuracy	15% of reading (using bar code sensitivity and average comp)
Measurement Repeatability	± 3 % of reading
Recommended Warm-Up Time	60 minutes from power applied to USB port
Power Consumption	100 μW in standby mode 14 mW in measurement mode
Expected Operating Life	> 5 years (10 years @ 25 ± 10°C; 60 ± 30%RH)
Operating Temperature Range	-20 to 40°C (-30 to 55°C intermittent)
Operating Humidity Range	15 to 95% (0 to 100% non-condensing intermittent)
Mechanical Dimensions	1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm)
Weight	< 2 Ounces
