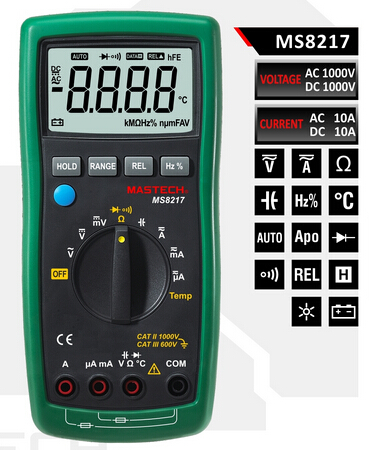

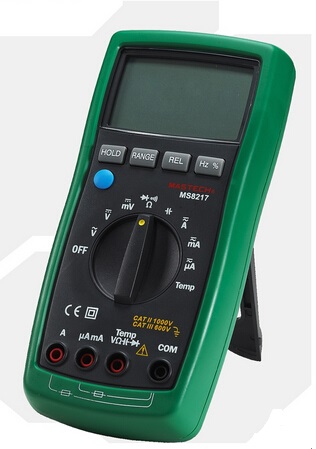

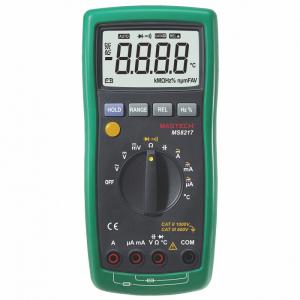

Digital Multimeter - MS8217
? Display 4000 counts
? Auto and Manual Ranging
? Auto Power Off
? Relative Measurement
? Diode Open Voltage 1.5V
? Continuity Buzzer <50±20?
? Power Supply: 3 x 1.5 AAA Batteries
? Certificate: RoHS
- Model Number: MS8217
- Data Sheet:
- Quantity:
- - +
Product Specification
MS8217 Digital Multimeter General Instructions
This instrument complies with IEC 1010-1 (61010 - 1@ IEC: 2001), CAT II 1000V and CAT III 600V overvoltage standards. See Specifications.
To get the best service from this instrument, read carefully this user's manual and respect the detailed safety precautions.
MS8217 Digital Multimeter Features
? Display 4000 counts
? Auto and Manual Ranging
? Auto Power Off
? Relative Measurement
? Diode Open Voltage 1.5V
? Continuity Buzzer <50±20?
? Data Hold
? Display Backlight
? Low Battery Display
MS8217 Digital Multimeter General Specifications
? Power Supply: 3 x 1.5 AAA Batteries
? Product Size: 185mm x 87mm x 53mm / 7.28" x 3.4" x 2.04"
? Product Weight: 360g/0.79lb
? Certificate: RoHS
? Safety Rating: CAT II 1000V / CAT 600V

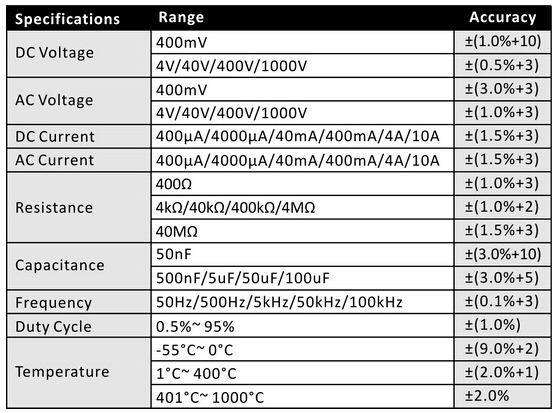

MS8217 Digital Multimeter Specifications
