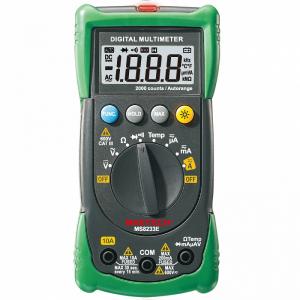

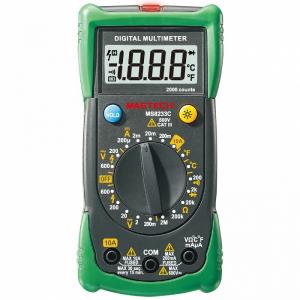

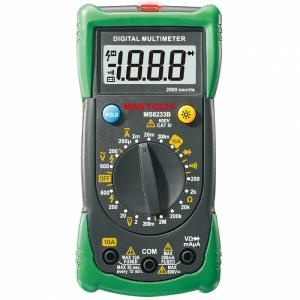

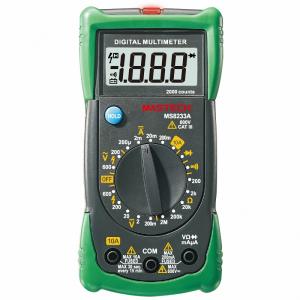

Digital Multimeter MS8233A - MS8233B/MS8233C/MS8233E

?? Display 2000 counts
?? Data Hold
?? Low Battery Display
?? Power Supply: 1 x 9V 6F22 Battery
?? Product Size: 140mm x 67mm x 30mm / 5.5" x 2.6” x 1.2”
?? Product Weight: 112g/0.25lb
?? Certificate: CE / ETL / RoHS
?? Safety Rating: CATIII 600V

Model Number: MS8233B/MS8233C/MS8233E
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Digital Multimeter Safety information
This multimeter has been designed according to IEC61010-1 conerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.

Follow all safety and operating instructions to ensure that the meter is used safely and is kept in good operating condition.

Full compliance with safety standards can be guaranteed only with test leads supplied. If necessary, they must be replaced with the type specified in this manual.

Digital Multimeter Specification
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.

Spec	Features	Accuracy
Spec	Features	MS8233A	MS8233B	MS8233C	MS8233E
DC Voltage	200mV/2V/20V/200V/600V				±(0.5%+2)
	200mV/2V/20V/200V	±(0.5%+3)	±(0.5%+3)	±(0.5%+3)
	600V	±(0.5%+3)	±(0.5%+3)	±(0.5%+3)	±(0.8%+2)
AC Voltage	2V/20V/200V/600V				±(1.2%+10)
AC Voltage	200V/600V	±(1.2%+10)	±(1.2%+10)	±(1.2%+10)
DC Current	200μA/2mA/20mA/200mA	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)	±(1.5%+4)
DC Current	10A	±(3.0%+5)	±(3.0%+5)	±(3.0%+5)	±(1.5%+3)
AC Current	200μA/2mA/20mA/200mA				±(1.5%+4)
AC Current	10A				±(1.5%+4)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.8%+4)	±(0.8%+4)	±(0.8%+4)	±(0.8%+4)
Temperature(°C/F°)	-20 ~ 1000°C			±(2.0%+2)	±(3.0%+3)
Temperature(°C/F°)	-4 ~ 1832°F			±(2.0%+4)	±(3.0%+6)

Digital Multimeter Features

Features	Item	MS8233A	MS8233B	MS8233C	MS8233E
Display	count	2000	2000	2000	2000
Autorange					?
NCV	non-contact voltage detection		?	?	?
Diode		3.0V	3.0V	3.0V	1.5V
Continuity		<60Ω	<60Ω	<60Ω	<70Ω
Data Hold		?	?	?	?
Display Backlight			?	?	?
MAX					?
