Product Specification

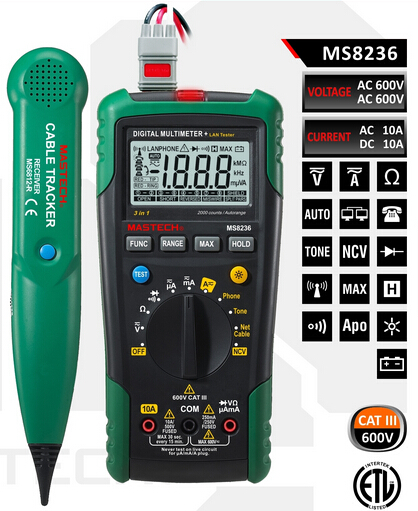

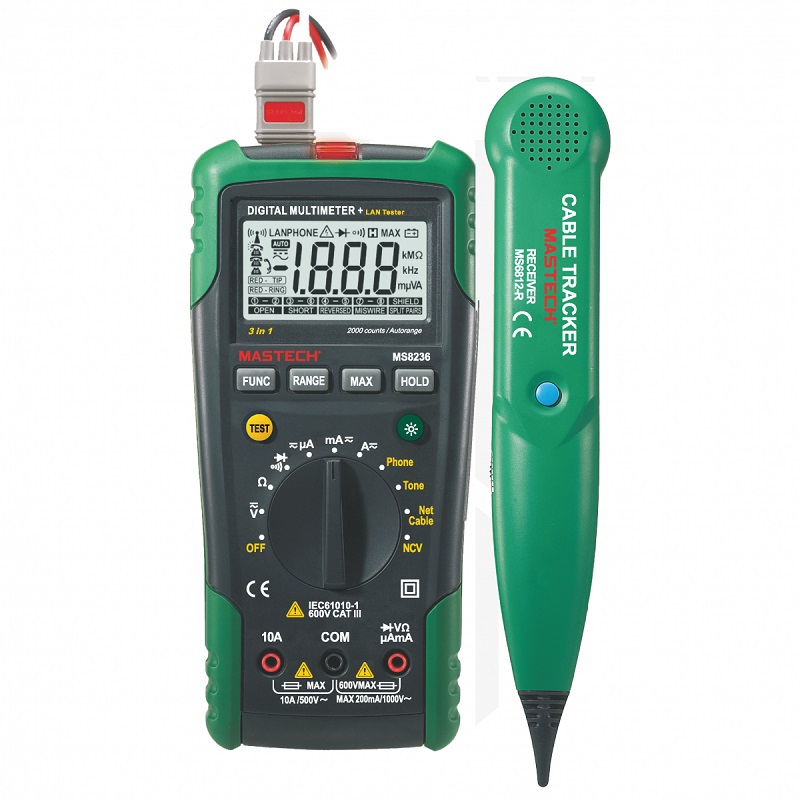

MS8236 Digital Multimeter With Lan/Phone/Tone Tester

MS8236 Digital Multimeter Description
The meter is a portable specialized measuring instrument with a large digital LCD, as well as a backlight source for easy reading. The range selector designed for single-hand operation makes measurement easy. Overload protection and low battery indication are provided. It is an ideal multi-functional instrument with scores of practical appliances for professional, factory, school, amateur and home use.

The meter can be used to measure DC and AC voltages and currents, and resistance, test circuit continuity and diodes, detect phone line mode, judge break points in cable lines, track the routing of cable lines, and detect network cable integrity and non-contact voltage.

The meter is provided with both automatic/manual ranges.
The meter is provided with the automatic shutdown function.
The meter is provided with the reading hold function.
The meter is provided with the maximum measurement.
The meter is provided with low battery voltage indication.

MS8236 Digital Multimeter Features
? Display 2000 counts
? Auto & Manual Ranging
? Auto Power Off
? Non-Contact Voltage Detector
? Diode Open Voltage 1.7V
? Continuity Buzzer <70?
? Maximum Measurement
? Data Hold
? Low Battery Display
? Display Backlight
? Network Cable Check
  -Test for open circuits, shorts, miss-wires, reversals,   split pairs, shield detection
  -Main unit and one remote allow one person testing of  T568A, T568B, 10Base-T.
  -Debug mode for detailed fault identification result
? Phone Check
  -Identify the state in the working telephone line:  Busy, Ringing or Clear"
? Tone
  -Judge the continuity of cables or wires.
  -Track the cables or wires and diagnose the break point

MS8236 Digital Multimeter General Specifications
? Power Supply: 2x9V 6F22 Batteries
? Product Size:
  MS8236- 195mm x 92mm x 55mm/7.7" x 3.6" x 2.2"
  MS6812R - 238mm x 43mm x 26mm / 9.4" x 1.7" x 1.0"
? Product Weight: 470g/1.04lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CATIII 600V
