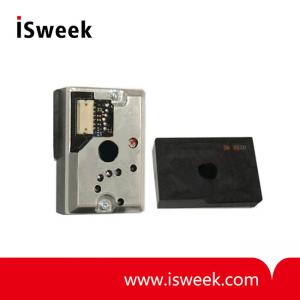

Dust sensor - GP2Y1026AU0F
This specification applies to the outline and characteristics of Model No. GP2Y1026AU0F (Dust sensor).
- Model Number: GP2Y1026AU0F
- Data Sheet:
- Quantity:
- - +
Product Specification
Application：
This specification applies to the outline and characteristics of Model No. GP2Y1026AU0F (Dust sensor).
Electro-optical Characteristics：
(Ta=25℃, Vcc=5V)
|
Parameter |
Symbol |
Conditions |
Min. |
Typ. |
Max. |
Unit |
|
Sensitivity |
K |
(*1)(*2) |
0.29 |
0.35 |
0.41 |
V / (0.1mg/?) |
|
Sensitivity Output at no dust |
⊿Vo |
(*1)(*2) |
0 |
— |
— |
V |
|
Output terminal voltage |
Txdl |
Output voltage at High-level (Ioh=1.5mA) |
4.35 |
— |
— |
V |
|
Txdl |
Output voltage at Low-level (Ioh=1.5mA) |
— |
— |
0.8 |
V |
|
|
Average supply current |
ICC |
Vcc=5V |
— |
15 |
20 |
mA |
(*1) Dust density shall be measured the density of MEVIUS (made by Japan Tobacco Inc.) by using a digital dust indicator P-5L2 (made by SIBATA SCIENTIFIC TECHNOLOGY LTD.).
Sensitivity : K shall be specified about output change when dust density is changed 0.1mg/?

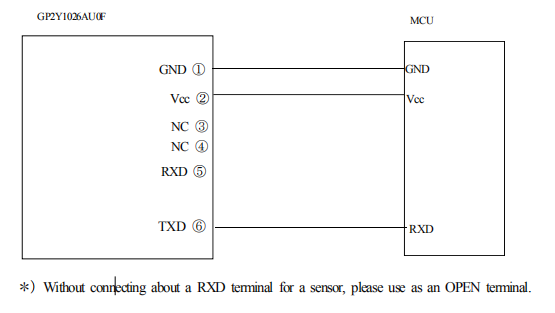

(*2) Connection circuit example.
