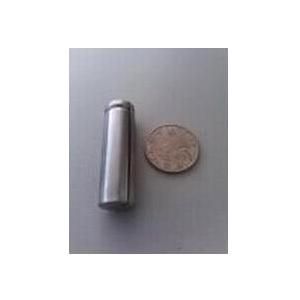

Electrochemical Carbon Monoxide (CO) Sensor 0-1000ppm - ME2B-CO
* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability
- Model Number: ME2B-CO
- Quantity:
- - +
Product Specification
ME2B-CO
Electrochemical Carbon Monoxide Sensor CO Sensor
ME2B-CO electrochemical sensor detects the CO gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of CO could be get by measuring value of current
Features:
* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability
Application:
Widely use for the domestic application for CO concentration detection.
|
Items |
Technical parameter |
|
Detection Range |
0-1000ppm |
|
Max detecting bound |
2000ppm |
|
Detecting life |
5 years |
|
Sensitivity |
5-11 nA/ppm |
|
Resolution |
1ppm |
|
Temperature range |
-10℃-50℃ |
|
Pressure range |
Normal atmosphere ±10% |
|
Response time(T90) |
<45S |
|
Humidity range |
15----%-90%RH |
|
Zero shift(-10℃-+40℃） |
≤10ppm |
|
Stability(/Year) |
<10% |
|
Load resistance(recommend) |
1000Ω |
|
Repeatability |
<3% output value |
|
Output linearity |
Linearity |
