Electrochemical Chlorine Gas Sensor (Cl2 Sensor) - 7CLH CiTiceL

? Operating Principle: 3-electrode electrochemical
? Measurement Range: 0-20 ppm Cl2
? Maximum Overload: 250 ppm Cl2
? Filter: None
? Sensitivity: 1.00 ± 0.25 μA/ppm
? Response Time (T90): <60 Seconds at 20°C
? Resolution: 0.1 ppm
? Repeatability: 2% of signal
? Linearity: Linear

  • Model Number: 7CLH CiTiceL
  • Data Sheet: Date Sheet File
Quantity:
- +

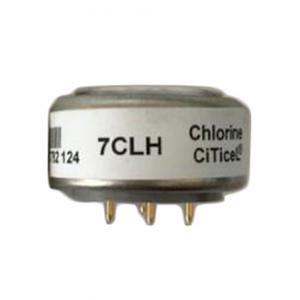

  • Electrochemical Chlorine Gas Sensor (Cl2 Sensor)

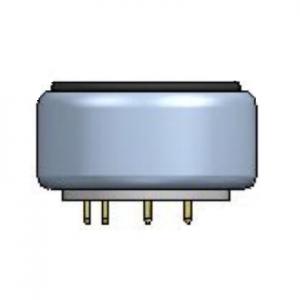

  • Electrochemical Chlorine Gas Sensor (Cl2 Sensor)
Mouse over image to zoom
Share:

Product Specification

7CLH CiTiceL Chlorine Sensor (Cl2 Sensor) Key Features & Benefits:
? Robust, industry standard 7-Series packaging
? Compact Size

7CLH CiTiceL Chlorine Sensor (Cl2 Sensor) Technical Specifications

MEASUREMENT
Operating Principle 3-electrode electrochemical
Measurement Range 0-20 ppm Cl2
Maximum Overload 250 ppm Cl2
Filter None
Sensitivity* 1.00 ± 0.25 μA/ppm
Response Time (T90)* <60 Seconds at 20°C
Baseline Offset (clean air) 0 to +0.5 ppm Cl2 equivalent
Zero Shift (+20°C to +40°C) < 0.2 ppm Cl2 equivalent
Resolution 0.1 ppm (when used with recommended electronics)
Repeatability 2% of signal
Linearity Linear
ELECTRICAL
Recommended Load Resistor 33 ?
Bias Voltage Not Required
MECHANICAL
Weight 17 g
Housing Material:
  Cap Polycarbonate
  Body ABS
Orientation Any
ENVIRONMENTAL
Operating Temperature Range -20°C to +50°C
Recommended Storage Temp 0°C to 20°C
Operating Pressure Range Atmospheric ± 10%
Operating Humidity Range 15 - 90% RH non-condensing
LIFETIME
Long Term Sensitivity Drift* <2% signal loss/month
Expected Operating Life Two years in air
Storage Life 6 months in CTL container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Poisoning
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments and operation.

When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
