Electrochemical Hydrogen Cyanide Gas Sensor (HCN Sensor) - 7HCN CiTiceL

? Operating Principle: 3-electrode electrochemical
? Measurement Range: 0 - 100 ppm HCN
? Filter: None
? Sensitivity: 0.10 ± 0.02 μA/ppm
? Response Time (T90): <200 Seconds at 20°C
? Resolution (Electronics dependant): 0.5 ppm
? Operating Temperature Range: -20°C to +50°C
? Operating Humidity Range: 15 - 90% RH non-condensing

  • Model Number: 7HCN CiTiceL
  • Data Sheet: Date Sheet File
Quantity:
- +

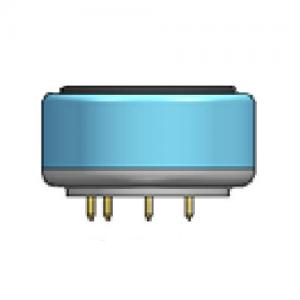

  •  Electrochemical Hydrogen Cyanide Gas Sensor (HCN Sensor)
Mouse over image to zoom
Share:

Product Specification

7HCN CiTiceL
Hydrogen Cyanide (HCN) Gas Sensor


APPLICATION NOTE: Not suitable for repeated or continuous exposures
7HCN is designed for life safety applications where the sensor is only exposed to gas occasionally. Repeated or continuous exposures will result in significant output drift and shortened operating life. If the sensor is exposed to gas, functionality and performance characteristics should be checked to confirm that the sensor is still performing within acceptable limits.

7HCN CiTiceL Hydrogen Cyanide Sensor (HCN Sensor) Technical Specifications

MEASUREMENT
Operating Principle 3-electrode electrochemical
Measurement Range 0 - 100 ppm HCN
Filter None
Sensitivity* 0.10 ± 0.02 μA/ppm
Response Time (T90)* <200 Seconds at 20°C
Resolution (Electronics dependant) 0.5 ppm
Baseline Offset (clean air)* -2.0 to +1.5 ppm HCN equivalent
ELECTRICAL
Recommended Load Resistor 10 ?
Bias Voltage Not Required
MECHANICAL
Weight 17 g
Housing Material:
  Cap Polycarbonate
  Body ABS
Orientation Any
ENVIRONMENTAL
Operating Temperature Range -20°C to +50°C
Recommended Storage Temp 0°C to 20°C
Operating Pressure Range Atmospheric ± 10%
Operating Humidity Range 15 - 90% RH non-condensing
LIFETIME
Expected Operating Life Two years in air
Storage Life 6 months in CTL container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Poisoning
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments and operation.

When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
