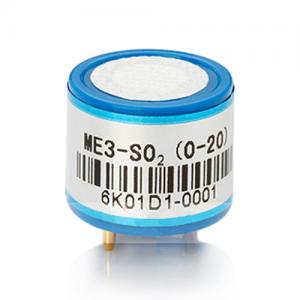

Electrochemical Sulfur Dioxide (SO2) Gas Sensor 0-20ppm - ME3-SO2

? Detected Range: 0 - 20ppm
? Max detecting concentration: 150ppm
? Life: 2 years
? Sensitivity (μA/ppm): 0.50±0.10uA/ppm
? Resolution: 0.1ppm
? Temperature Range: -20°C ~ +50°C
? Repeatability: <2%
? Response Time(T90): ≤30S

Model Number: ME3-SO2

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ME3-SO2 SO2 Gas sensor for SO2 detector

ME series SO2 sensors have low consumption, high precision and sensitivity, wide range of linearity, and better anti-jamming capacity, good reproducibility, stability etc advantages.

ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Application:
Detecting SO2 in industry and environmental protection field

ME3-SO2 Sulfur Dioxide Sensor SO2 Sensor Specifications

Sensor	ME3-SO2
Type	Electrochemical
Stand Cover	Plastic (ME3)
Detected Range	0 - 20ppm
Filter	H2S filter out
Max detecting concentration	150ppm
Life	2 years
Sensitivity (μA/ppm)	0.50±0.10uA/ppm
Resolution	0.1ppm
Temperature Range	-20°C ~ +50°C
Pressure Range	Standard atmosphere ±10%
Response Time(T90)	≤30S
Humidity range	15% -90%RH non-condensing
Zero Drift (-20℃ ~ +40℃)	≤0.2ppm
Signal attenuation (/month)	<2%
RL (recommend)	10Ω
Repeatability	<2%
Output Linearity	Linearity
