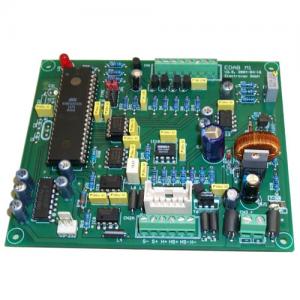

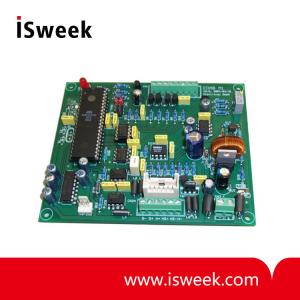

Electronic Board for SENSORE Oxygen Sensors - EDAB M1V2-L

? Power consumption about 2.5 - 3.0 Watts
? Cable length to the sensor up to 10 meters
? PCB size: 120 * 100 mm
? Useable for all offered sensor types
? Microprocessor controlled
? Input voltage 7-30 VDC or 6 VDC (optional)

Model Number: EDAB M1V2-L
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

EDAB M1V2-L Electronic Board for SENSORE Oxygen Sensors
"EDAB" is due to its size designed to allow for all connectivity options ., This electronic module is very flexible but only usable for amperometric sensors.

The sensor temperature is controlled by microcontroller to constant temperature. The evaluation of sensor signal is linearized and is available either as a voltage signal (0-5V) or digitally via RS232.

The driver and analyze unit for oxygen sensors offered by SENSORE is to operate the sensor according to the specification and to convert the sensor signal to a linear output voltage. The oxygen sensor can be mounted in a chamber connected to the electronic board by a cable.

The driver and analyze board can be used for any type of oxygen sensor offered by SENSORE because of its general structure. Customized types of electronic boards are also available.

EDAB M1V2-L Electronic Board for SENSORE Oxygen Sensors Feature:
? Power consumption about 2.5 - 3.0 Watts
? Cable length to the sensor up to 10 meters
? PCB size: 120 * 100 mm
? Optional software for reading and storingmeasuring data and adjustment of the electronic available.

EDAB M1V2-L Electronic Board for SENSORE Oxygen Sensors Technical Data:
? Useable for all offered sensor types
? Microprocessor controlled
? Temperature control of sensor element (no influence of the ambient medium temperature onto output signal)
? Linearized output signal for all sensor types 0 - 5 V DC (lower output voltage adjustable with the optional software)
? 4 programmable threshold values for alarm (programmable with the optional software)
? Serial interface
? Adjustment of the electronic (Calibration of the sensor, measuring of the heater resistance) with jumper
? Input voltage 7-30 VDC or 6 VDC (optional)
