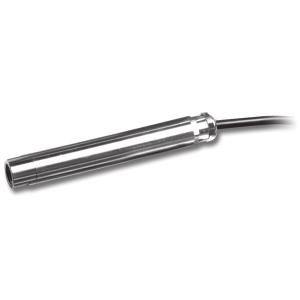

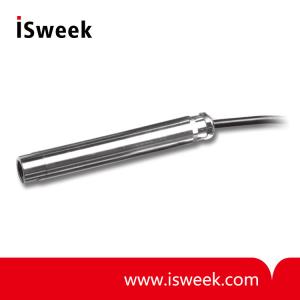

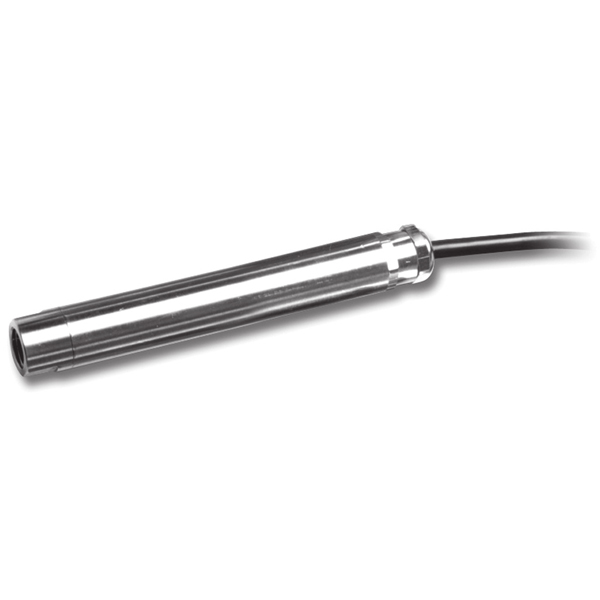

Fiber Optic Pressure Sensor - FOP-C
? Pressure range: from 30psi to 10,000psi (170 to 69,000kPa)
? Resolution: 0.00625% typical with averaging
? Accuracy: 0.25% of full scale
? Connector type: ST connector (optional connector for long range applications)
? Operating temperature: -20 to 60°C (-4 to 140°F)?
- Model Number: FOP-C
- Data Sheet:
- Quantity:
- - +
Product Specification
FOP-C Fiber Optic Pressure Sensor Description
The FOP-C is a fiber optic pressure sensor designed for general industrial applications in harsh and hazardous environments, where very high pressure conditions can be found.
FOP-C Fiber Optic Pressure Sensor Key features:
? Intrinsically safe
? Immune to EMI/RFI
? From 30 to 10,000psi range
? Accuracy of 0.25%
? Lead cable: up to 3km
FOP-C Fiber Optic Pressure Sensor Applications:
? Industrial environments
? In-situ process monitoring
? Harsh and hazardous environments
? High pressure environments
? Aerospace applications
? Oil well and natural gas pumping station
? Plastic injection molding and extrusion monitoring
? Food packaging
FOP-C Fiber Optic Pressure Sensor Specifications:
Pressure range: from 30psi to 10,000psi (170 to 69,000kPa)
Resolution: 0.00625% typical with averaging
Accuracy: 0.25% of full scale
Connector type: ST connector (optional connector for long range applications)
Operating temperature: -20 to 60°C (-4 to 140°F)
