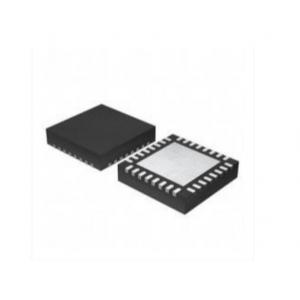

Fingerprint IC - P1032BF1

Core: ARM Cortex-M3, 96MHz max
Memories:
-Embedded 8M bits flash for program code and data storage
-128K byte SRAM
Clock, reset and supply management:
-Embedded LDO, support power supply from 3.3V to 5V
-Embedded POR, LVD, WDG
-32.768KHz oscillator for system PLL and RTC
-1 to 30MHz clock input for system PLL
-Internal 48MHz factory-trimmed RC

  • Model Number: P1032BF1
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Fingerprint IC
Mouse over image to zoom
Share:

Product Specification

P1032BF1 is an ARM Cortex-M3 based MCU specially designed for Wi-Fi / Bluetooth communication control. P1032BF1 has large embedded SRAM and support large program code, it can also be used in general MCU applications.


Features:
Core: ARM Cortex-M3, 96MHz max
Memories:
-Embedded 8M bits flash for program code and data storage
-128K byte SRAM
Clock, reset and supply management:
-Embedded LDO, support power supply from 3.3V to 5V
-Embedded POR, LVD, WDG
-32.768KHz oscillator for system PLL and RTC
-1 to 30MHz clock input for system PLL
-Internal 48MHz factory-trimmed RC
Low power:
-Sleep, Deep Sleep modes
-Separated power supply for RTC and 176Byte backup registers
Audio DAC with volume control
5 channels 12-bit SARADC
Debug mode: Serial Wire Debug(SWD)
22 I/O port with interrupt capability
Connectivity
-2 UARTs
-1 SPI master, 1 SPI slave
-1 SDIO interface
-OTG 2.0 full-speed controller with OTG PHY
-IR (NEC) decoder
Firmware protect and Upgrade:
-48-bit unique ID
-Code encryption mechanism for flash code
-Firmware can be updated through SD or USB disk
Timers
-3 timers
-7 PWM, 1 PWC

Application:

Smart lock

Fingerprint lock
