Product Specification

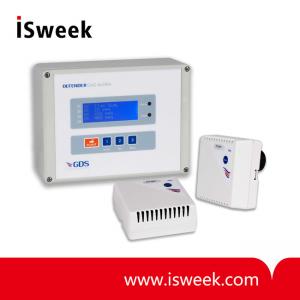

GDS-DEFENDER Flammable / Toxic / Oxygen / Refrigerant Gas Alarm Description
The GDS Defender gas leak detection system features remote sensors connected to the main control unit via a 3 core cable network. The control unit is an advanced design using the latest technology and provides a high integrity system whilst offering a significant cost saving over conventional gas alarm systems.

Standard sensors for use in commercial and light industrial applications, such as laboratories, workshops, boiler plant rooms, etc, are available for monitoring toxic, flammable, oxygen or refrigerant gases. Each gas sensor continuously monitors the atmosphere for any hazardous conditions. On detection of gas the sensor will indicate the gas level status A1, A2, A3 by LED indication and sounder. Information received by the control panel from the sensor is then displayed, indicating the zone, gas type and alarm status. Alarm levels that are exceeded are then able to activate user selectable relays and appropriate control actions.

Sensors may be used as stand alone devices when powered from a single sensor 24v DC supply (plug in jack) or the AC mains version sensors.

GDS-DEFENDER Flammable / Toxic / Oxygen / Refrigerant Gas Alarm Features
? 3 core sensor cable network
? Sensors pre-set and tested
? Toxic/Flammable/Oxygen/Refrigerant sensor combination
? 1-16 sensors – 4 zones up to 64 sensors (16 per zone) with additional power pack
? User definable screen text
? Three alarm levels (timed ON/OFF option)
? Individual sensors with audible visual alarms + relay - optional stand alone
? Connect directly to the GDS Combi CANbus system
? Designed for ease of installation
? System easily extended
? Off the shelf system
? Interface sensor for any 4~20mA/switch device - option

GDS-DEFENDER Flammable / Toxic / Oxygen / Refrigerant Gas Alarm Specifications
