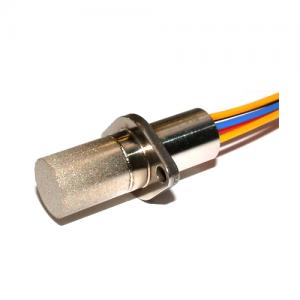

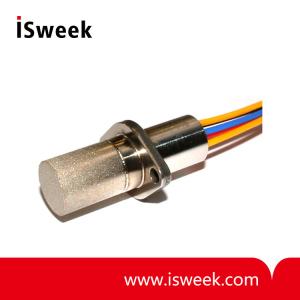

Flange Mounted Zirconia Oxygen Sensor - O2S-FR-T5

? Oxygen pressure range 2 mbar - 3bar
? Zirconium dioxide (ZrO2 ) sensing elements
? Non-consumption technology
? Integral heating element
? No need for temperature stabilisation
? No reference gas required
? High accuracy
? Linear output signal
? Operates with external interface boards

  • Model Number: O2S-FR-T5
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Flange Mounted Zirconia Oxygen Sensor
  • Flange Mounted Zirconia Oxygen Sensor
Mouse over image to zoom
Share:

Product Specification

O2S-FR-T5 Flange Mounted Zirconia Oxygen Sensor FEATURES

?  Oxygen pressure range 2 mbar - 3bar
?  Zirconium dioxide (ZrO2 ) sensing elements
?  Non-consumption technology
?  Integral heating element
?  No need for temperature stabilisation
?  No reference gas required
?  High accuracy
?  Linear output signal
?  Operates with external interface boards


O2S-FR-T5 Flange Mounted Zirconia Oxygen Sensor SPECIFICATIONS

Heater Voltage
    Porous Cap (15mm)
    Stand by
4.35V DC ± 0.1V DC (1.85A)
2V DC  (0.85A)
Pump resistance @ 700°C
 < 6k?
Permissible gas temperature
 -100 to 250°C
Gas flow rate
 0 to 10 m/s
Repetitive permissible acceleration
 5 g
Incidental permissible acceleration
 30 g


ELECTRICAL CONNECTION

1: Pump (Red)
2: Common (Black)
3: Heater (Yellow)
4: Sense (Blue)
5: Heater (Yellow)

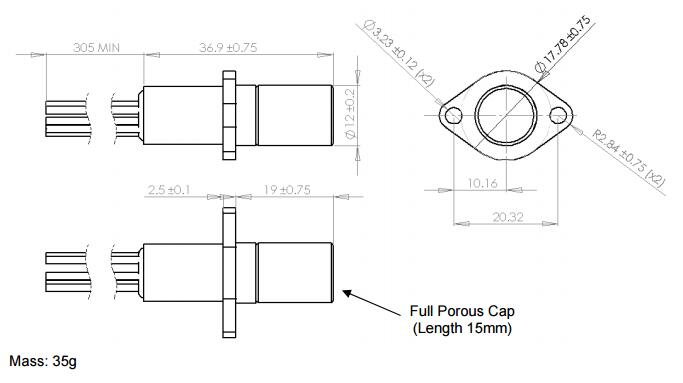

OUTLINE DRAWING


PERFORMANCE CHARACTERISTIC

Characteristics Min. Typ. Max. Unit
Oxygen pressure range 2 3000 mbar
Accuracy 5 mbar
Internal operating temperature 700 (4.35V DC ) °C
Response time (10-90% step) 4 s
Warm up time (prior to sensor operation) 100 s
Warm up time (from stand by) 20 s
Output stabilisation time ~180 s
