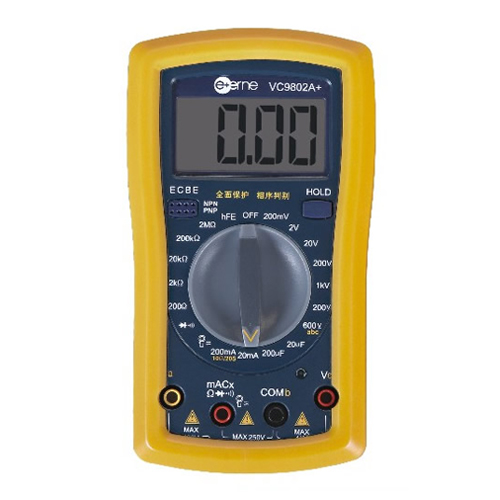

Full Protection Digital Multimeter - VC9802A+
? 3 1/2 digit digital display, 2000 count resolution
? 19 measuring ranges
? Resistance, continuity and diode measurements
? Capacitance measurement
? Current measurement with external clamp accessory
? Verifying Positive/Negative Phase sequence
? High-voltage measurement, up to 1kV
- Model Number: VC9802A+
- Quantity:
- - +
Product Specification
VC9802A+ Digital Multimeter General Feature
? 3 1/2 digit digital display, 2000 count resolution
? 19 measuring ranges
? Resistance, continuity and diode measurements
? Capacitance measurement
? Current measurement with external clamp accessory
? Verifying Positive/Negative Phase sequence
? High-voltage measurement, up to 1kV
? hFE measurement
? Data Hold
VC9802A+ Digital Multimeter Accessories
1 xTest lead set, 1 x Yellow holster, 1 x Phase test yellow line, 3 x AAA Batteries, user's 1 x manual
VC9802A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
0.1mV |
±(1.0%+3d) |
|
AC Voltage |
200V~600V |
0.1mV |
±(1.0%+3d) |
|
AC/ DC Current |
20mA/200mA |
10μA/100μA |
±(2.0%+5d) |
|
Resistance |
200Ω~2MΩ |
100mΩ |
±(1.0%+3d) |
|
Capacitance |
20μF~200μF |
10nF |
±(2.5%+3d) |
|
Diode/ Continuity |
Yes |
Outward Clamp |
Yes |
|
Phase |
Yes |
hFE |
Yes |
