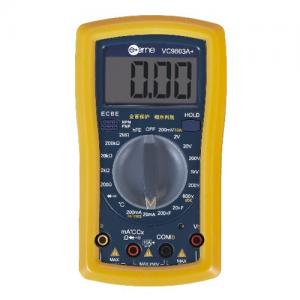

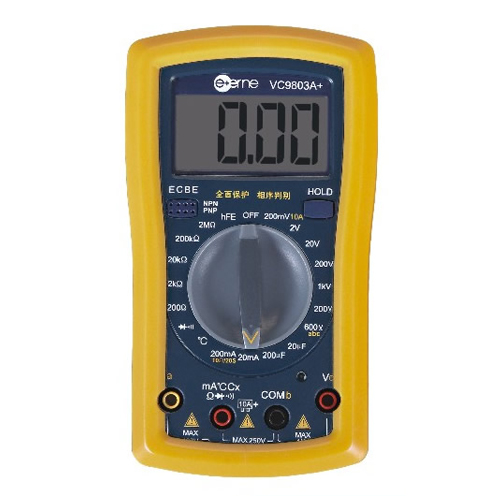

Full Protection Digital Multimeter with Thermometer - VC9803A+
? 3 1/2 digit digital display, 2000 count resolution
? 20 measuring ranges
? Continuity test and Diode test
? Resistance and Capacitance measurements
? Temperature measurement with K type temperature probe
? Verifying Positive /Negative Phase sequence
? Measuring power capacitance
? High-voltage measurement, up to 1kV
- Model Number: VC9803A+
- Quantity:
- - +
Product Specification
VC9803A+ Digital Multimeter General Feature
? 3 1/2 digit digital display, 2000 count resolution
? 20 measuring ranges
? Continuity test and Diode test
? Resistance and Capacitance measurements
? Temperature measurement with K type temperature probe
? Verifying Positive /Negative Phase sequence
? Measuring power capacitance
? High-voltage measurement, up to 1kV
? hFE measurement
? Data Hold
VC9803A+ Digital Multimeter Accessories
1 x Test lead set, 1 x Yellow holster, 1 x Phase test yellow line, 3 AAA x Batteries,
1 x Type-K temperature probe, 1 x user's manual
Dimension: 155 x 85 x 40mm
Weight: 250g (include batteries)
VC9803A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
0.1mV |
±(1.0%+3d) |
|
AC Voltage |
200V~600V |
0.1mV |
±(1.0%+3d) |
|
AC/DC Current |
20mA/200mA/10A |
10μA/100μA |
±(2.0%+5d) |
|
Resistance |
200/2k/200k/2MΩ |
100mΩ |
±(1.0%+3d) |
|
Capacitance |
20μF~200μF |
10nF |
±(2.5%+3d) |
|
Temperature |
-20℃~400℃ |
1℃ |
±(2.5%+4d) |
|
Diode |
Yes |
Continuity |
Yes |
|
Phase |
Yes |
hFE |
Yes |
