Gas Analyser Probe (GAP) - GAP

? Sealing rating: IP65
? Supply voltage: 24V DC ±10%
? Current consumption: 250mA maximum
? The GAP provides customers with a single gas flue or ventilation monitoring system
? Integrated LCD screen with soft-touch buttons
? Robust enclosure

Model Number: GAP
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GasTrack

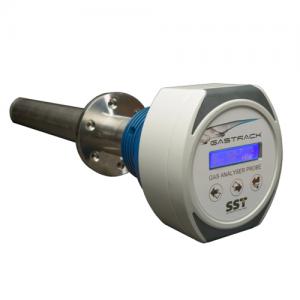

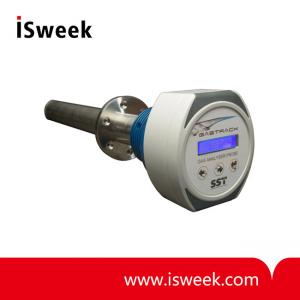

Gas Analyser Probe (GAP)

Gas Analyser Probe (GAP) is a single gas monitoring system designed for measuring O2 in the exhaust of combustion applications or to monitor CO2 and control the quality of air in ventilation applications.

Gas Analyser Probe (GAP) FEATURES
? The GAP provides customers with a single gas flue or ventilation monitoring system
? Integrated LCD screen with soft-touch buttons
? Robust enclosure
? With its modular design, the GAP is fully configurable at time of ordering; select the sensor and output requirements to suit your needs

Gas Analyser Probe (GAP) APPLICATIONS
? Measuring O2 in the exhaust of combustion applications
? Monitoring CO2 and controlling the quality of air in ventilation applications

Gas Analyser Probe (GAP) TECHNICAL SPECIFICATIONS

Sealing rating		IP65
Supply voltage		24V DC ±10%
Current consumption		250mA maximum
Options:
LCD screen	–on-board	16 character x 2 line
Sensor	–one	O2 or CO2
Digital output	–one	RS232 or RS485 (Modbus RTU)
Analogue output	–up to two	4 - 20mA; load 500Ω max. or 0 - 10V DC ; load 10kΩ max.
Relay output	–up to two	SPST normally open

Gas Analyser Probe (GAP) SENSOR OPTIONS

Zirconia O2 sensor:
Measurement range	0 - 25%
Accuracy	1% vol. O2
Resolution	0.01% vol. O2
NDIR CO2 sensor:
Measurement range	0 - 5000ppm, 0 - 10000ppm
Accuracy	±70ppm, ±5% of reading
Resolution	1ppm

Gas Analyser Probe (GAP) ORDER INFORMATION
The GAP is fully configurable at the time of ordering; list the sensor and output requirements to suit your needs, for example:
? O2 sensor, one relay, current output and an RS232 output
? CO2 sensor, voltage output, RS485 output and two relays
