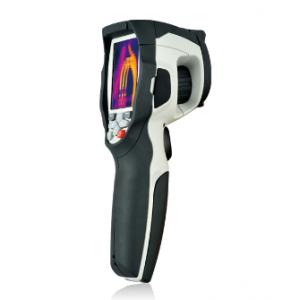

High Performance Thermal Imagers - DT-980/982

High Resolution IR Images
19,200 pixels (160x120) Infrared resolution(982)
Visible Light Digital Camera
640x480 resolution with fl ash provides sharp images

Model Number: DT-980/982

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DT-980/982

High Performance Thermal Imagers
DT-980 (80x80), DT-982 (160x120) Thermal Imagers are designed to make your work easier, more productive and effective. 160 × 120 resolution at 50 Hz for real-time capture, temperature range from -20°C to 350°C (-4°F to 662°F), 32X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. Hot/Cold spot marker automatically finds the hottest and coldest spots. It includes memory card, Lithium polymer battery & power supply, and USB cable. Wi-Fi connectivity allows the Infrared Thermal Camera to send images and data to mobile devices.

1. 2.8" LCD Display;
2. Annotate images with Voice;
3. Picture-in-Picture;
4. 32X Continuous Zoom;
5. Megapixels Digital camera;

6. OS and Adriod APP support;

Size (H x W x D): 224mm x 77mm x 96mm
Weight: 500g

Specifications

Specifications	DT-980	DT-982
Imaging and optical data
IR resolution	80×80 pixels	120×160 pixels
Focal Plane Array (FPA) / Spectral range	Uncooled microbolometer / 8–14 μm
Focal length	9mm	9mm
Field of View (FOV)	17°x17°	19°x 25°
Minimum focus distance	0.5m	0.5m
Spatial resolution	3.78mrad	2.78mrad
Thermal sensitivity/NETD	< 0.1°C @ +30°C (+86°F)/ 100mK	< 0.1°C @ 30°C (86°F) / 100 mK
Image frequency	50Hz
Focus	Manual
Zoom	1-32x continuous, digital zoom
Image presentation
Image modes	IR image, visual image, picture in picture
Picture in Picture	IR area on visual image
Color palettes	Iron/rainbow/grey/grey inverted
Measurement
Object temperature range	–20 to 150°C (–4 to 302°F)	–20 to 150°C (–4 to 302°F)
	0 to 350°C (32 to 662°F)	0°C to 350°C (32 to 662°F)
Accuracy	±2°C (±3.6°F) or ±2% of reading
Measurement analysis
Spot	Center Spot, Auto hot or cold markers
Set-up
laser	< class2
Language selection	English, Chinese, French, German, Spanish
Storage of videos/images
Inside Memory	100M bytes, About 80pictures or one minute video record
Storage media	8Gbytes Micro SD card
Video storage format	Standard MPEG-4, 1280x960@30fps, on memory card > 60 minutes
Image storage format	Standard JPEG, including measurement data, on memory card > 6000 pictures
Digital camera
Built-in visible light digital camera	5 Megapixels
Built-in digital lens data	59°
Data communication interfaces
Interfaces &Video out	USB-mini, audio, HDMI
USB	Data & Live video transform between camera and PC or smartphone
Power system
Battery / Input voltage	Li-ion battery, 4 hours operating time / DC 5V
Charging system / Power management	In camera (AC adapter) /Automatic shutdown
