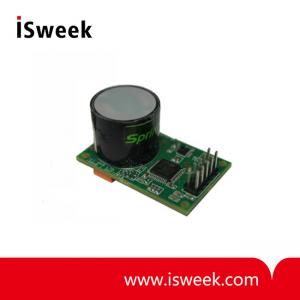

High Speed CO2 Carbon dioxide Sensor NDIR Low power consumption - SprintIR-WX
20 readings per second
High flow throughput capability
Custom flow adaptor options
70ppm typical measurement accuracy
- Model Number: SprintIR-WX
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom

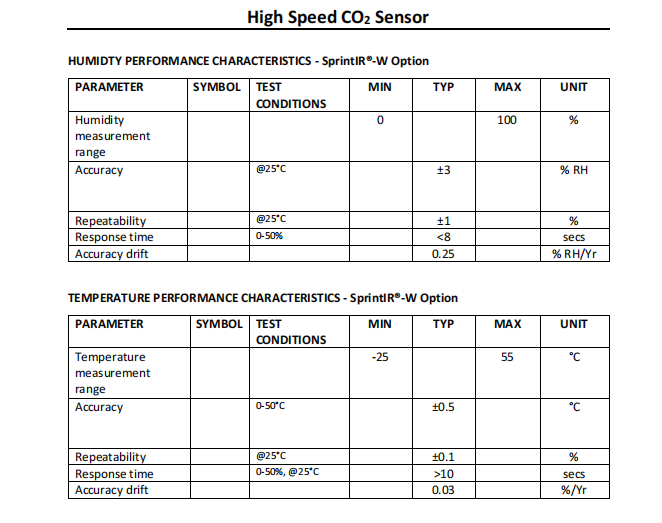

Product Specification
High Speed CO2 Carbon dioxide Sensor NDIR Low power consumption SprintIR-WX DESCRIPTION：
The SprintIR?-W is a high flow through NDIR CO2 sensor using state-of-the-art solid-state LED optical technology. The low power LEDsare manufactured in-house, giving GSS complete control of the CO2 sensor signal chain.
The SprintIR?-W is designed for applications that need high response time and high-speed measurement capability. The SprintIR?-W is takes 20 readings per second, making it ideal for equipment that needs real-time CO2 gas analysis or monitoring.
The sensor is available in multiple versions, capable of measuring CO2 levels up to 100% concentration.
High Speed CO2 Carbon dioxide Sensor NDIR Low power consumption SprintIR-WX FEATURES：
- 20 readings per second
- High flow throughput capability
- Custom flow adaptor options
- 70ppm typical measurement accuracy
- Measurement range up to 100%
- Solid state NDIR LED optical technology
- UART control and data interface
- Built-in auto-zeroing
High Speed CO2 Carbon dioxide Sensor NDIR Low power consumption SprintIR-WX APPLICATIONS：
- Healthcare
- Food Packaging
- Sport Science
- CO? Fire Suppression Deployment

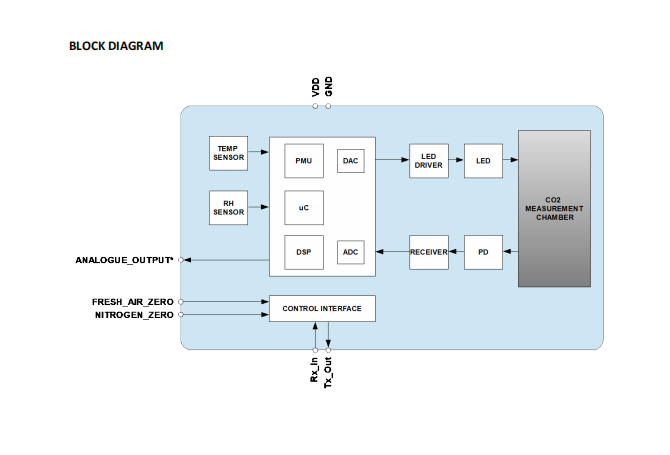

High Speed CO2 Carbon dioxide Sensor NDIR Low power consumption SprintIR-WX BLOCK DIAGRAM：
