In-line Flat-Surface, Self-Cleaning pH and ORP Electrodes - S660 Series

? Range:
0-14pH (0-12pH without na+ error)
+/- 2000mV for ORP
? ?Quick disconnect design saves time and money
? ?Installs in seconds, no tools necessary
? ?Flat-surface design resists coating
? ?Available with or without ATC elements

  • Model Number: S660 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • In-line Flat-Surface, Self-Cleaning pH and ORP Electrodes
  • In-line Flat-Surface, Self-Cleaning pH and ORP Electrodes
Mouse over image to zoom
Share:

Product Specification

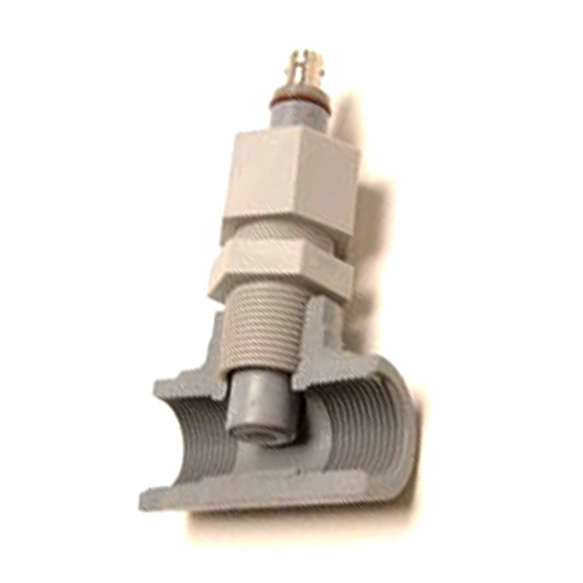

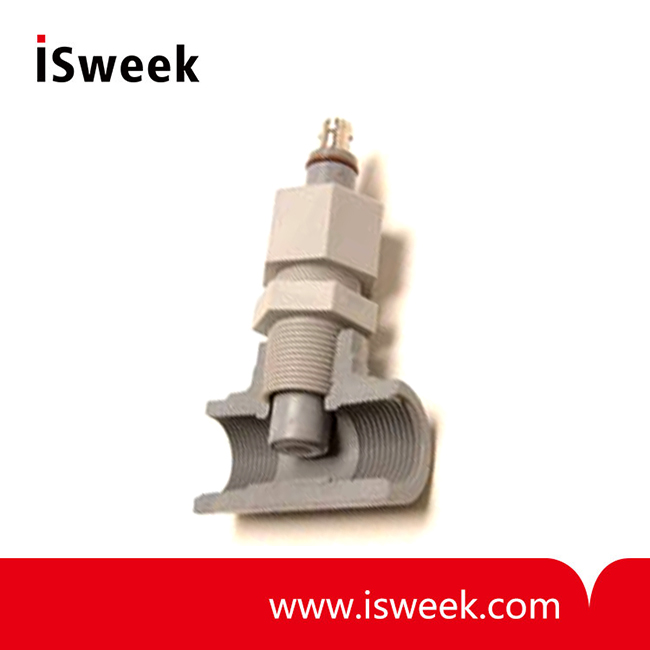

S660 Series Flat-Surface, Self-Cleaning pH and ORP Electrodes


Item No.: S660CD, S660CD-ORP, S661CD, S661CD-ORP, S662CD (also -LC, -HF versions), FC66P, FC66TC, FC67P, FC67TC, FC68P, FC68TC, S648, S653


S660 Series pH and ORP Electrodes Features
Quick disconnect design saves time and money
Installs in seconds, no tools necessary
Flat-surface design resists coating
Available with or without ATC elements

S660 Series pH and ORP Electrodes Description

In-line mountings are ideal for replacing existing threaded electrodes. They are useful in piping systems where flow can be shut off for electrode maintenance and where flow rates match the application’s needs; for example, turbulent flow is needed in self-cleaning applications. a simple, reusable gland is used to mount the electrode. electrodes, glands and flow cells are available to fit 3/4”, 1” and 2” lines. Mounting hardware is available with or without aTC elements. Choose from standard electrode models with HT gels, low ionic models and HF resistant models.


S660 Series pH and ORP Electrodes Specifications

Range
0-14pH (0-12pH without na+ error)
+/- 2000mV for ORP

Wetted Materials

Body/Junction:



Measuring Surface:


CPVC/HDPe ("-CD" models)

PVDF/ Porous PVDF ("-KD" models)


pH glass (pH), Platinum or Gold (ORP
Temperature/Pressure Range
0C* - 75C (0-100psig), 0C*-80C (0-85psig)
  Note: From 0 to 10C, electrodes will exhibit slower response time.
Reference Type
ag/agCl, Sealed Double Junction
  Specifications for Fitting FC66P (also included in FC66TC, FC67P, FC67TC, FC68P and FC68TC)
Materia
20% glass-filled polypropylene, gray color
  Specifications for Cables (S653, S648 and also included in FC66TC, FC67TC and FC68TC)
Cable Type
RG174 Coaxial cable with noise reduction layer (S653, S648), approx OD = .120
Material
Cap = CPVC, cable jacket = PVC
Cable Type

FC66TC, FC67TC, FC68TC = RG174 coaxial cable x 1, 3 each

PVC jacketed 20aWG wires, Red, blk, grn with Outer PVC jacket

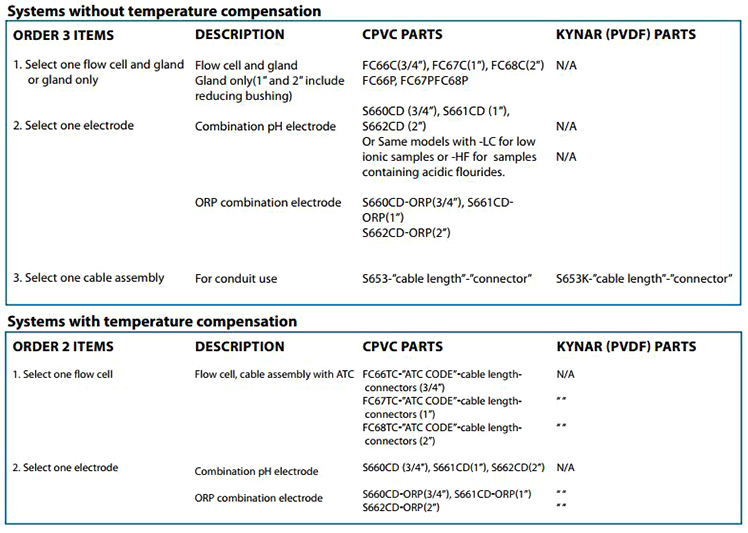

S660 Series pH and ORP Electrodes ORDERING INFORMATION
