Infrared Thermometer - GM300E

? Temperature range: -50 ~ 420°C (-58 ~ 788°F)
? Resolution: 0.1°C or 0.1°F
? Repeatability: 1% of reading or 1°C
? Response time: 500 mSec, 95% response
? Spectral response: 8-14 um
? Distance to Spot size: 12:1
? Operating Temperature: 0 ~40°C (32 ~ 104°F)
? Operating Humidity: 10~95%RH non-condensing

Model Number: GM300E
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

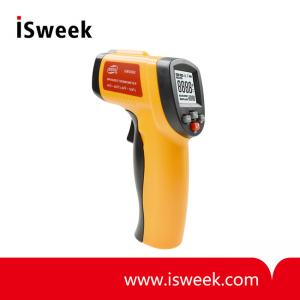

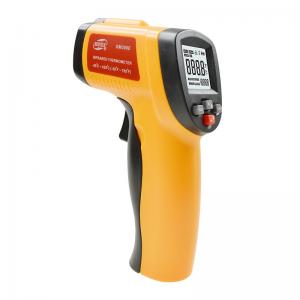

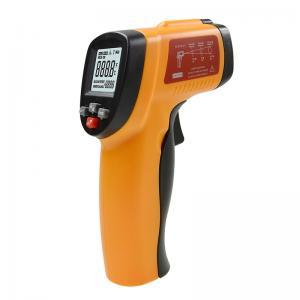

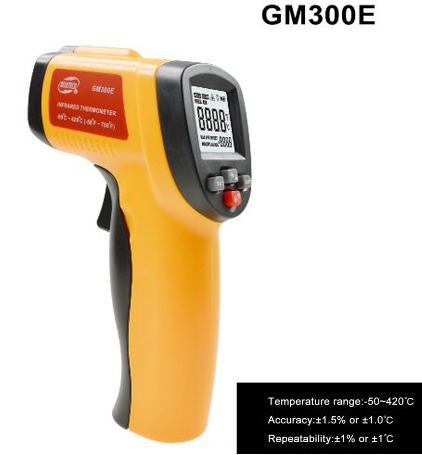

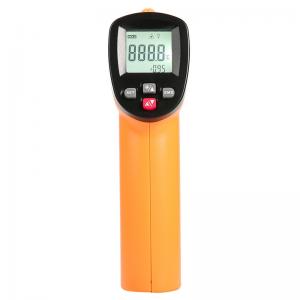

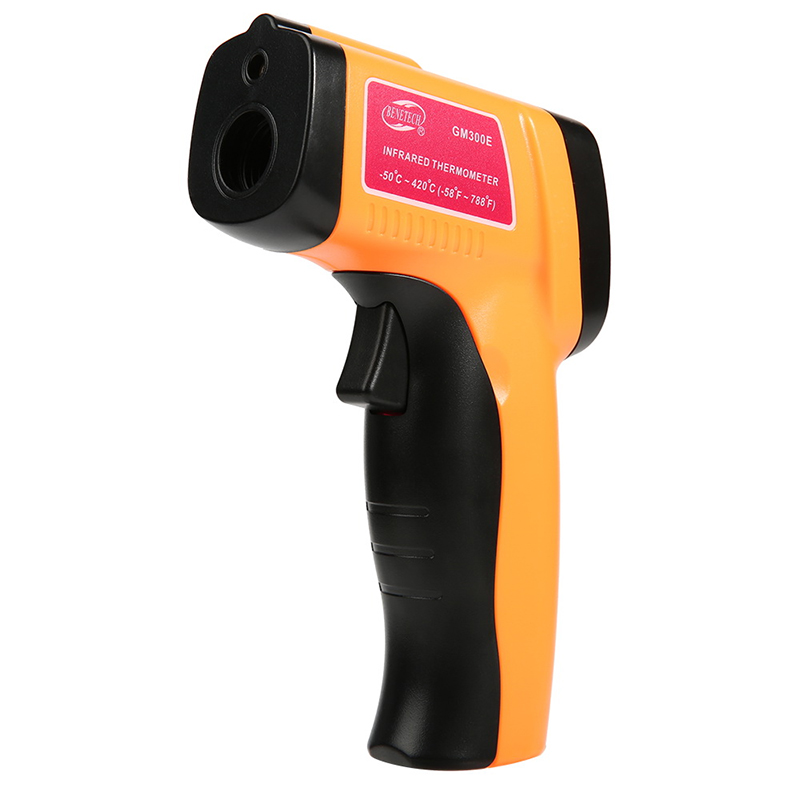

GM300E Infrared Thermometer Description
This GM300E infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

GM300E Infrared Thermometer Specification

Temperature range	-50 ~ 420°C (-58 ~ 788°F)
Accuracy	0°C~420°C (32°F~788°F): ±1.5°C (±2.7°F) or ±1.5% -50°C~0°C (-58°F~32°F): ±3°C (±5°F) Whichever is greater
Resolution	0.1°C or 0.1°F
Repeatability	1% of reading or 1°C
Response time	500 mSec, 95% response
Spectral response	8-14 um
Emissivity	0.10 ~1.00 Adjustable (0.95 Preset)
Distance to Spot size	12:1
Operating Temperature	0 ~40°C (32 ~ 104°F)
Operating Humidity	10~95%RH non-condensing, up to 30°C(86°F)
Storage Temperature	-20 ~ 60°C (-4~140°F)
Power	9V Alkaline or NiCd battery
Typical battery life (Alkaline)	Non-laser mode: 22 hrs; Laser models: 12 hrs
Weight	147.5g
Dimension	153 x 101 x 43mm
