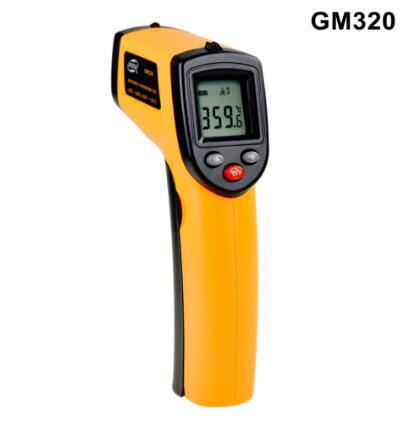

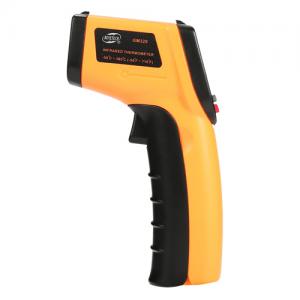

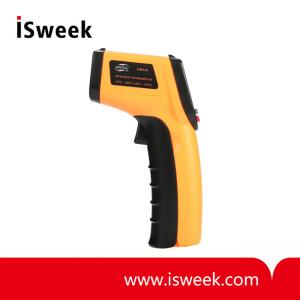

Infrared Thermometer - GM320

* Temperature range: -50 ~ 330℃ (-58~626℉)
* Accuracy: ±1.5% or ±1.5℃
* Repeatability: ±1% or ±1℃
* Distance Spot Ratio: 12:1
* Emissivity: 0.95 preset
* Resolution: 0.1℃/℉
* Response Time: 500ms
* Wavelength: 8-14μm

Model Number: GM320
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM320 Infrared Thermometer Description
This GM320 infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

GM320 Infrared Thermometer Specification

Temperature range	-50 ~ 330℃ (-58 ~ 626℉)
Accuracy	0℃~330℃ (32℉~626℉): ±1.5℃(±2.7℉) or ±1.5% -50℃~0℃(-58℉~32℉): ±3℃ (±5℉) Whichever is greater
Resolution	0.1℃ or 0.1℉
Repeatability	1% of reading or 1℃
Response time	500 mSec, 95% response
Spectral response	8-14 um
Emissivity	0.95 Preset
Distance to Spot size	12:1
Operating Temperature	0 ~40℃ (32 ~ 104℉)
Operating Humidity	10~90%RH non-condensing, up to 30℃(86℉)
Storage Temperature	-20 ~ 60℃ (-4~140℉)
Power	1.5V AAA*2 battery
Typical battery life	Laser off:12 hrs
