Inline CH4 NDIR Sensor - NDIR CH4 Sensor

Measurment range 0-4.4 Vol.-% (100%UEG)
Temperature and pressure compensated
Integrated temperature measurement
RS485 interface
4-20mA interface

  • Model Number: NDIR CH4 Sensor
  • Data Sheet: Date Sheet File
Quantity:
- +

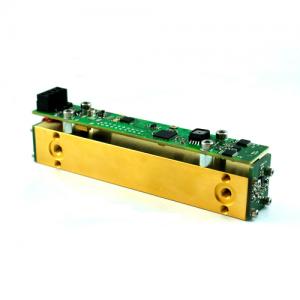

  • Inline CH4 NDIR Sensor
  • Inline CH4 NDIR Sensor
Mouse over image to zoom
Share:

Product Specification

Inline NDIR?CH4 Sensor GENERAL CHARACTERISTICS
Measurment range 0-4.4 Vol.-% (100%UEG)
Temperature and pressure compensated
Integrated temperature measurement
RS485 interface
4-20mA interface


Inline NDIR?CH4 Sensor SPECIFICATION

Measuring gas
 CH4
Measurement range
 0 ... 4.4 Vol.-% (0 ... 100%UEG)
Resolution
 ± 300ppm
Accuracy?
 < 2% of the measured value
Response time?
 < 10s
Heat up time
 < 10min
Storage temperature
 -20 ... +85°C
Operating temperature
 -20 ... +65°C
Operating humidity range sensor
Operating humidity range electronics
 0 ... 99% (not condensated)
0 ... 85% (not condensated)
Interface
 RS485
Analogue output
 4 ... 20mA
Supply voltage
 10 ... 36VDC
Power consumption
 < 2W
Long-term stability
 < 5% of the measured value per 1 year

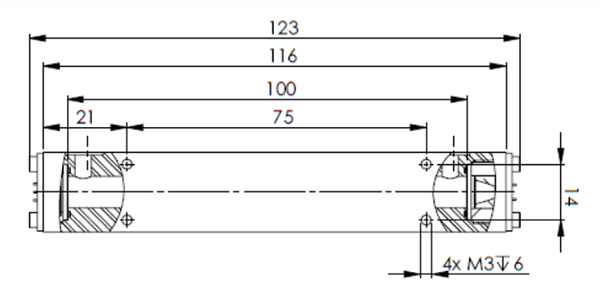

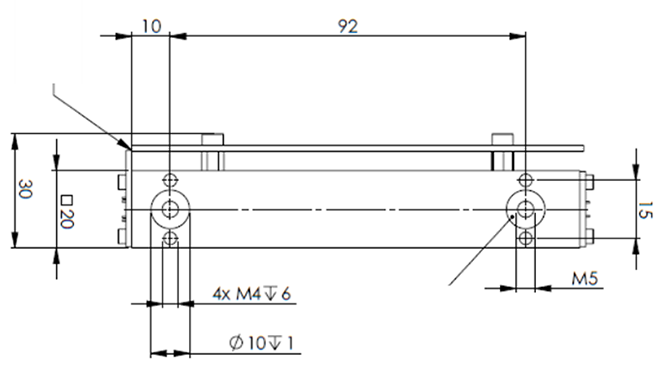

Inline NDIR CH4 Sensor mechanical drawing
