Integrated Low Voltage I2C Ambient Light Sensor - LTR-308ALS-01

Product Specification

LTR-308ALS-01 Ambient Light Sensor Description

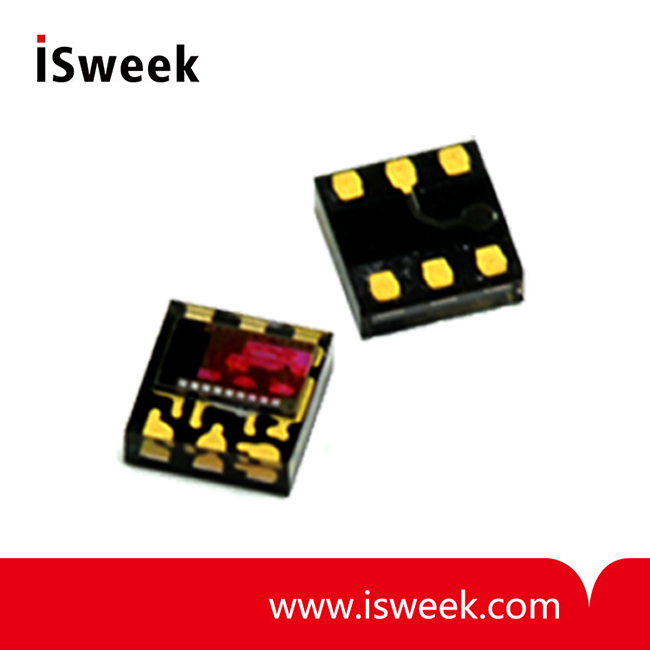

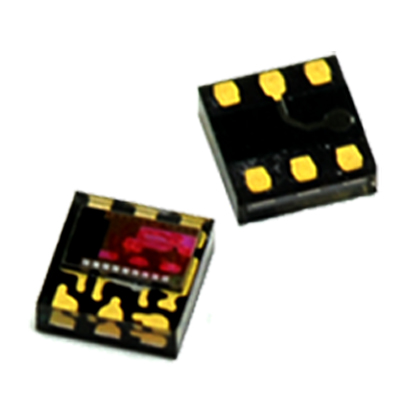

The LTR-308ALS-01 is an integrated low voltage I2C ambient light sensor (ALS) in a single 2x2mm miniature chipled lead-free surface mount package.

The ALS provides a linear response over a wide dynamic range, which is well suited to applications under very low or bright ambient brightness.

The sensor has a programmable interrupt with hysteresis to response to events and that removes the need to poll the sensor for a reading which improves system efficiency. This CMOS design and factory-set one time trimming capability ensure minimal sensor-to-sensor variations for ease of manufacturability to the end customers.

LTR-308ALS-01 Ambient Light Sensor Application
Control brightness of display panel in mobile, computing, and consumer devices.

LTR-308ALS-01 Ambient Light Sensor Features
? I2C interface (Standard mode @100kHz or Fast mode @400kHz)
? Ambient Light in ultra-small chipled package
? Very low power consumption with sleep mode capability
? Operating voltage ranges: 1.7V to 3.6V
? Operating temperature ranges: -40 to +85°C
? Built-in temperature compensation circuit
? Programmable interrupt function for ALS with upper and lower thresholds
? RoHS and Halogen free compliant
?   ALS Features
    - 16 to 20 bits effective resolution
    - Wide dynamic range (0.01 to 157K lux) with linear response
    - Close to human eye spectral response
    - Automatic rejection for 50Hz/60Hz lighting flicker

LTR-308ALS-01 Ambient Light Sensor Rating and Specification
Absolute Maximum Rating at Ta=25°C
