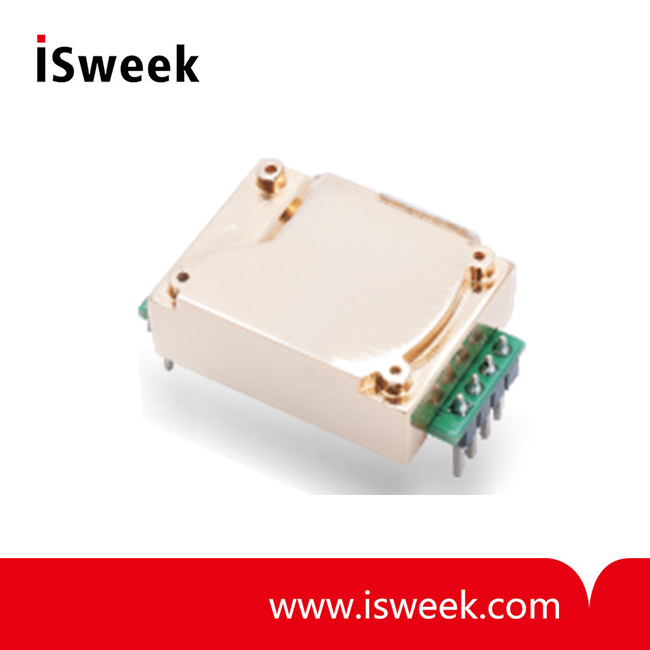

Intelligent infrared CO2 sensor - HT8101

? IR non-dispersive the to measure carbon dioxide concentration
? Full range temperature correction
? Dual-channel design with better accuracy and stability
? Highly integrated design, convenient for user’s application
? The gas chamber with gold-plated surface, it’s waterproof and anti-corrosion

Model Number: HT8101
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Overview:

HT8101 is a digital carbon dioxide sensor based on non-dispersive infrared absorption (NDIR) method. Using non-dispersive infrared (NDIR) method to detects the presence of CO2 in the air, with good selectivity, no oxygen dependence, and long lifetime; Built-in temperature compensation; It also has serial port output, analog output and PWM output, very convenient to use. The sensor is a high-quality sensor combining mature infrared absorption gas detection technology with precise optical circuit design and sophisticated circuit design.

Features:

? IR non-dispersive the to measure carbon dioxide concentration

? Full range temperature correction

? Dual-channel design with better accuracy and stability

? Highly integrated design, convenient for user’s application

? The gas chamber with gold-plated surface, it’s waterproof and anti-corrosion

Potential applications:

? Cold chain transportation

? Air conditioners

? Air quality monitoring equipment

? Air purifier

? Fresh air system

? Smart home

Specification:

Model No.	HT8101
Detected gas	Carbon dioxide (CO2)
Detected range	400~5000ppm
Accuracy	±(50ppm+5% reading value)
Power-on stable time	120s
Operating environment	-10~60℃; 0~95%RH (Non-condensing)
Storage environment	-20~60℃; Below 0~95%RH(Non-condensing)
Supply voltage	4.5~5.5V DC
Average operating current	＜20mA
Peak current	110mA
Output protocol	UART_TTL(3.3V) Analog output (DAC) (default 0.4~2V) (0~3V range configurable)
Preheat time	3min
Respond time	T90<30s
Lifetime	≥5years
