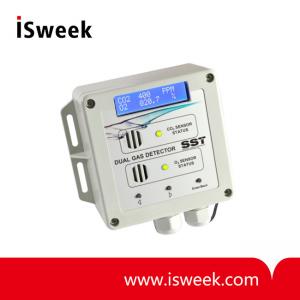

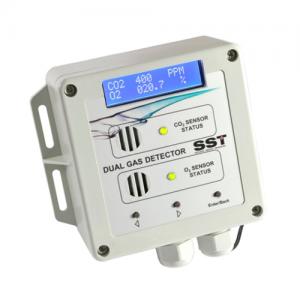

Intelligent Transmitter / Controller (ITC) - ITC

? Weight: < 400 grams
? Sealing rating: IP65
? Compact, wall-mounted design
? Sensors: O2 and CO2
? Communications?: Ethernet (TCP), RS232 or RS485 (Modbus RTU)

Model Number: ITC
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GasTrack

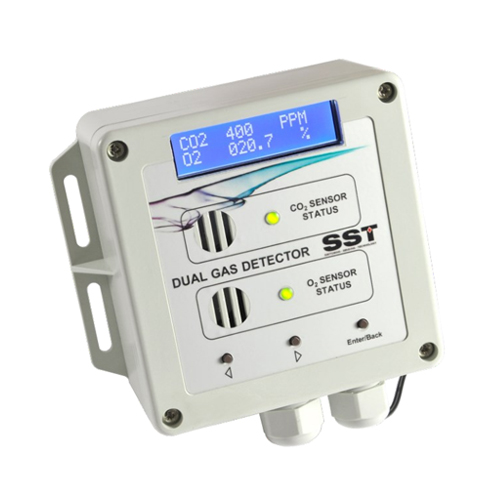

Intelligent Transmitter / Controller (ITC)

Intelligent Transmitter / Controller (ITC) FEATURES
? The ITC provides customers with a single or dual gas monitoring system
? Optional integrated LCD screen with soft-touch buttons
? Compact, wall-mounted design
? With its modular design, the ITC is fully configurable at time of ordering; select the input voltage, sensor(s), and output requirements to suit your needs

Intelligent Transmitter / Controller (ITC) APPLICATIONS
Due to its versatility the ITC system is suitable for a variety of applications including laboratories, hotels, cellars, factories and other industrial facilities.

Intelligent Transmitter / Controller (ITC) TECHNICAL SPECIFICATIONS

Weight		< 400 grams
Sealing rating		IP65
Options:
Supply voltage	or	24VAC/DC ±10%; current 250mA AC mains; current 100mA max.
Sensors	–up to two	O2 and CO2
Analogue output	–up to two	4 - 20mA; load 500Ω max. 0 - 10VDC; load 10kΩ max.
Communications	–one	Ethernet (TCP), RS232 or RS485 (Modbus RTU)
Relay outputs	–up to two	SPST normally open
LCD screen	–on-board	16 character x 2 line
Alarms	–visual –audio	LED; bi-colour — per sensor Buzzer; 70dB at 4kHz

Intelligent Transmitter / Controller (ITC) SENSOR OPTIONS

O2 sensor:
Measurement range	0 - 25%
Accuracy	1% vol. O2
Resolution	0.01% vol. O2
CO2 sensor:
Measurement range	0 - 5000ppm, 0 - 10000ppm
Accuracy	±70ppm, ±5% of reading
Resolution	1ppm

Intelligent Transmitter / Controller (ITC) ORDER INFORMATION

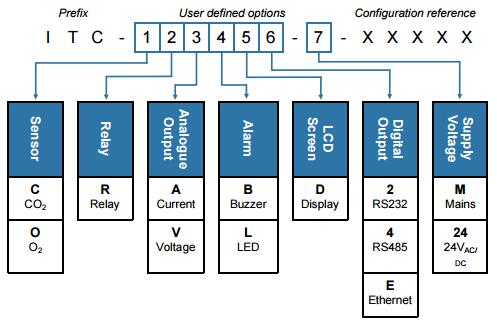

Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require — omit those you do not. Include the 'ITC' prefix.

Examples:
? O2 sensor, one relay, one current output, one LED and an RS232 output → ITC-ORAL2-M
? CO2 sensor, O2 sensor, two relays, one current output, one voltage output, buzzer, two LEDs, LCD screen, RS485 output and Ethernet output → ITC-CORRAVBLLD4E-24
