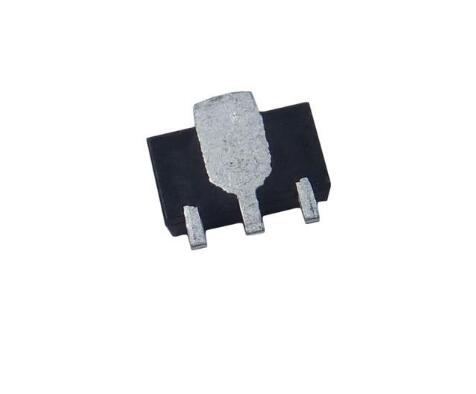

Korea GreenChip LED driver IC - GP8110Q
Direct AC Line 1TAP LED Driver with max. 80mA constant current
Precision of constant current : < ±5%
Wide input voltage range : max. AC 265V, DC 400V
Minimum number of external components
Simple circuit and low cost
Excellent EMC performance
- Model Number: GP8110Q
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The GP8110Q is 1 TAP Direct AC Line LED Driver. Output Current is designed to be max. 80mA by R(EXT) and is invariant to the output voltage variation, ambient temp. variation.
The GP8110Q can work as switch or current regulation, Therefore it is suitable for regulating the current with simple one terminal LED String which is very low cost. It is also suitable for regulating the current with multi terminal LED String which is the good THD.
The PCB design of applications is also flexible to meet various requirements.The GP8110Q is especially suitable for applications of low cost LED lighting which replaces bulb, tube lamp etc.
FEATURES:
Direct AC Line 1TAP LED Driver with max. 80mA constant current
Precision of constant current : < ±5%
Wide input voltage range : max. AC 265V, DC 400V
Minimum number of external components
Simple circuit and low cost
Excellent EMC performance
High efficiency achieved
High PF and Low THD using multi-terminal control method
Excellent TRIAC dimming controller
Available up to 12W
Protection : Thermal Shutdown with hysteresis, Temp. compensation
Operation temperature : -40℃ ~ 125℃
APPLICATIONS:
Direct AC Line LED Driver up to 12W
LED Bulb lamp
T5/T8 LED tube lamp
LED Street lighting
