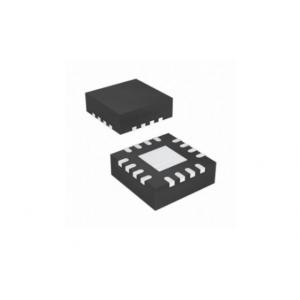

Korea Wellang Radio frequency IC - WT20-1809

? SLEEP pin for ultra-low power consumption mode
? Integrated boost MOSFET, current sensing, and compensation
? Stable with low-profile ceramic boost capacitors
? Adjustable LNB output current limit from 300 to 800mA
? Boost peak current limit scales with LNB current limit setting

  • Model Number: WT20-1809
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Korea Wellang Radio frequency IC
Mouse over image to zoom
Share:

Product Specification

Intended for analog and digital satellite receivers, this single low noise block converter regulator (LNBR) is a monolithic linear and switching voltage regulator, specifically designed to provide the power and the interface signals to two LNB down converters via coaxial cables. The WT20-1809 requires few external components, with the boost switches and compensation circuitry integrated inside of the device. A high switching frequency is chosen to minimize the size of the passive filtering components, further assisting in cost reduction. The high level of component integration ensures extremely low noise and ripple figures. For DiSEqCTM communications, a tone control pin is provided to gate the internally-generated 22 kHz tone on-and-off.

A comprehensive set of fault registers are provided which, comply with all the common standards, including: overcurrent, thermal shutdown, under-voltage, and power not good.

The device uses a 2-wire bidirectional serial interface, compatible with the I2C? standard, which operates up to 400 kHz.
A SLEEP pin is available to maximize power savings and to quickly shut down the device if needed, without I2C? control.

The WT20-1809 is supplied in a lead (Pb) free package.


Features:
? SLEEP pin for ultra-low power consumption mode
? Integrated boost MOSFET, current sensing, and compensation
? Stable with low-profile ceramic boost capacitors
? Adjustable LNB output current limit from 300 to 800mA
? Boost peak current limit scales with LNB current limit setting
? 8 programmable LNB output voltage (DAC) level
? LNB overcurrent limiter with shutdown timer
? Tracking boost converter minimizes power dissipation
? LNB transition times configurable by external capacitor
? Push-pull LNB output stage maintains 13.667→19.667V and 19.667→13.667V transition times, even with highly capacitive loads
? Built-in 22kHz tone oscillator facilitates DiSEqC? tone encoding, even at no-load
? Tone generation does not require additional external components
? Diagnostic features : PNG, CPOK
? Extensive protection features : UVLO, OCP, TSD
? 2-wire serial I2C?-compatible interface




Applications:
? Satellite Receivers
? Satellite-TV
? Satellite-PC
