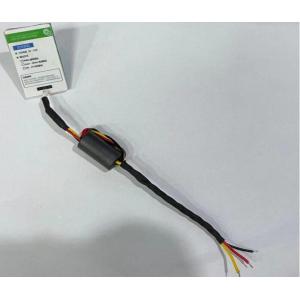

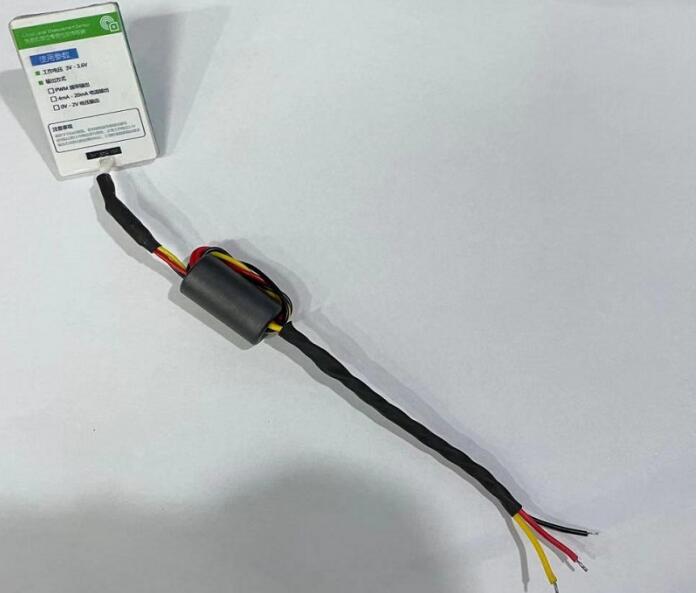

Level sensing module - LLM
Non-contact measurement: can penetrate a 1-15mm non-metallic container
Capacitance measurement range: 0.5 pF-100 pF
Capacitance measurement accuracy: 0.5-10 pF, the accuracy is 0.05 pF
-10 – 30 pF, with a precision of 1%
-30 – 100 pF, with a precision of 2%
- Model Number: LLM
- Data Sheet:
- Quantity:
- - +
Product Specification
The liquid level sensing module LLM (Liquid-level Meter) measures the change of dielectric constant through the capacitance high frequency circuit. The module digital signal output liquid capacitor value, converted into liquid level height, which can measure continuous liquid level or segment level, and the module can also provide liquid temperature information for compensation. The product can be widely used in various liquid level and water immersion detection scenarios.
Function：
Non-contact measurement: can penetrate a 1-15mm non-metallic container
Capacitance measurement range: 0.5 pF-100 pF
Capacitance measurement accuracy: 0.5-10 pF, the accuracy is 0.05 pF
-10 – 30 pF, with a precision of 1%
-30 – 100 pF, with a precision of 2%
Capacitor measurement resolution: 0.001 pF
Sampling interval: 2-10ms adjustable
Typical temperature measurement range: -40℃ ~125℃
Temperature resolution: 16bit ADC 0.004℃
Typical temperature measurement accuracy: ± 0.5℃, customized ± 0.1℃
Long-term working temperature: -40℃ ~85℃
Application：
Level
Water flooding detection
