Liquid Level Switches - Optical LLIS

Product Specification

    Hazardous area approved, SST Sensing’s range of intrinsically safe optical liquid level switches are designed and certified for use in demanding applications where direct contact with hydrocarbons, fuels, and flammable or explosive liquids is likely.

    Using infrared technology and the principle of total internal reflection, our liquid level switches detect the presence or absence of most liquids. An almost instantaneous response time is standard, and switch point repeatability is +/- 1 mm.

    SST liquid level switches have an operating temperature range between -30℃ and +80℃ (-22°F…+176°F). Stainless steel housing and a choice of sensing tip materials ensure they are extremely robust and resistant to chemical attack.

Highlights

? ATEX, UKCA and IECEx certified

? Ambient and liquid temperature – 30℃…+80℃(-22 °F…+176 °F)

? Metric and imperial process connection options

? NAMUR output

? Speed of response from the optical sensor is almost instantaneous

? No calibration required

? 316 stainless steel housing

Applications

? Presence or absence of any liquid

? Petrochemicals / Oil and gas

? Heavy -duty automotive

? Leak detection

? Hydraulic reservoirs

? Tank / container level-control

? Downstream analyzer protection.

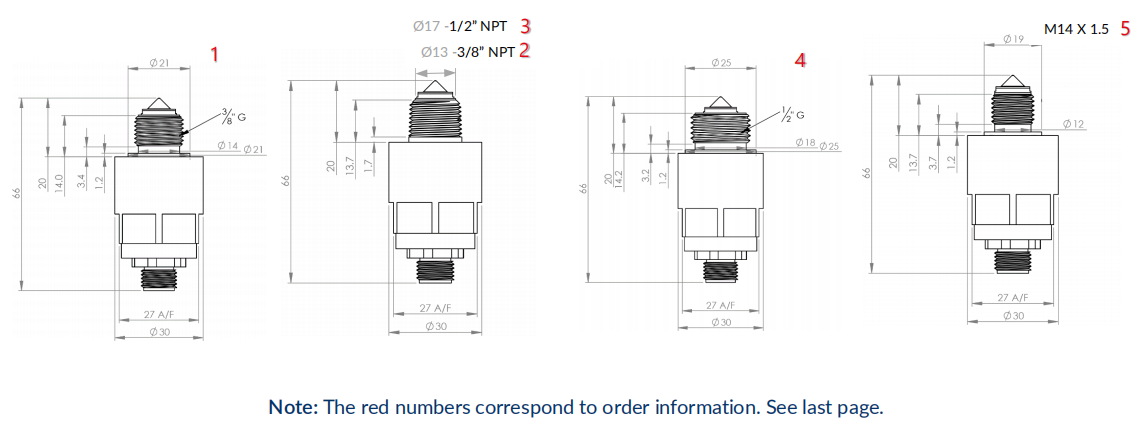

LLIS process connection dimensions

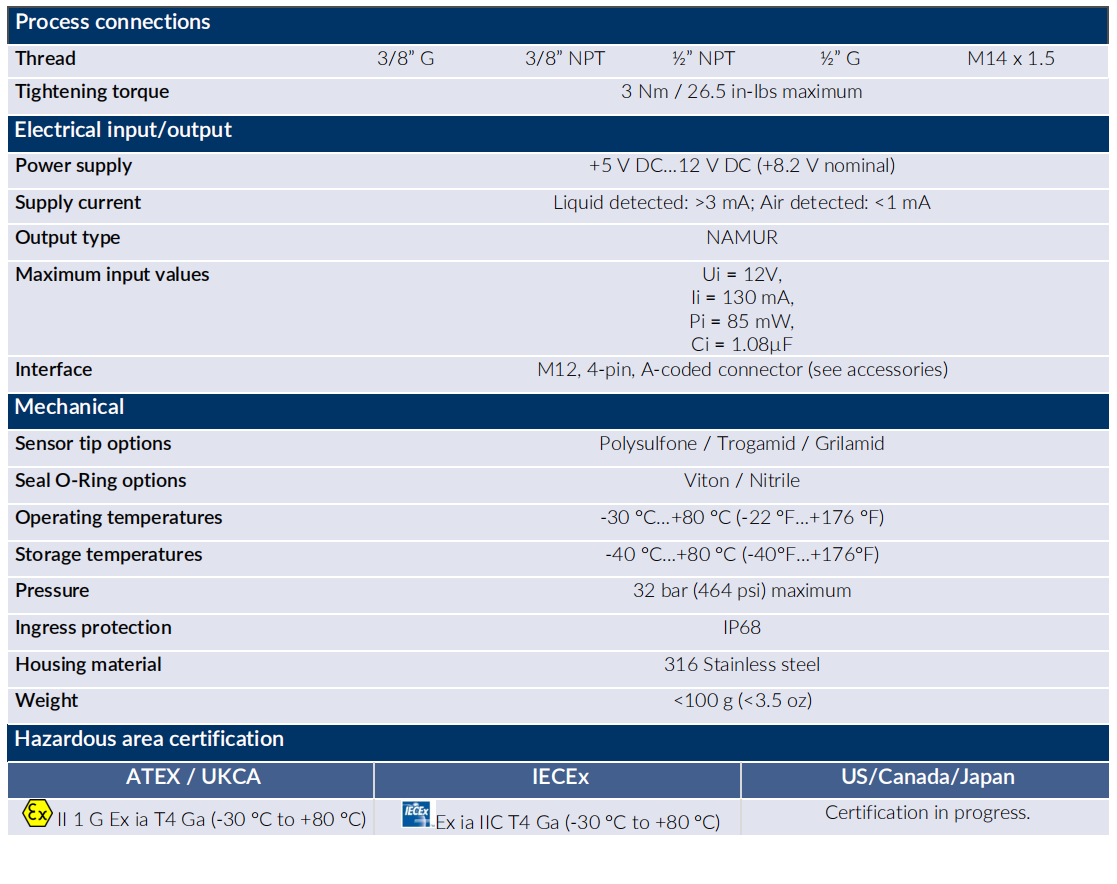

Technical specifications
