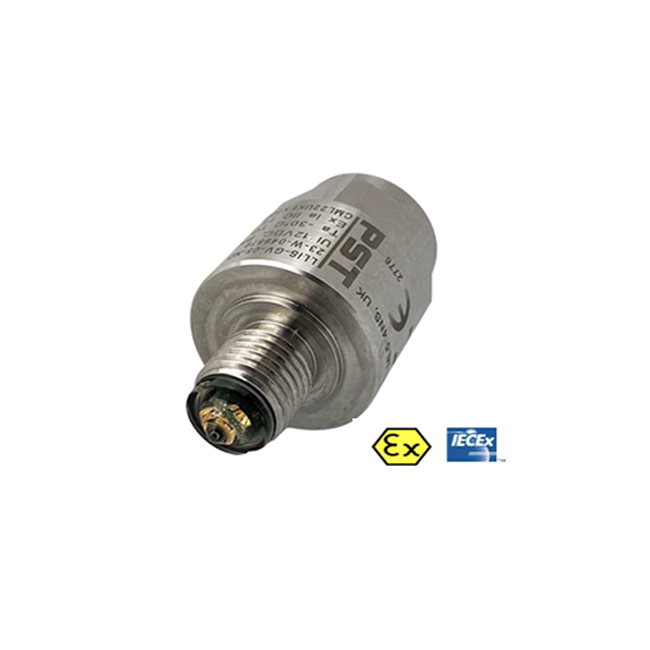

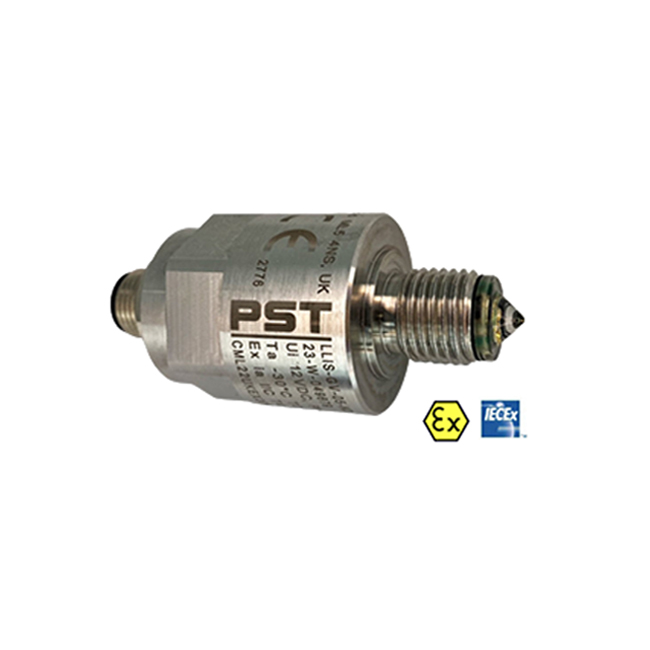

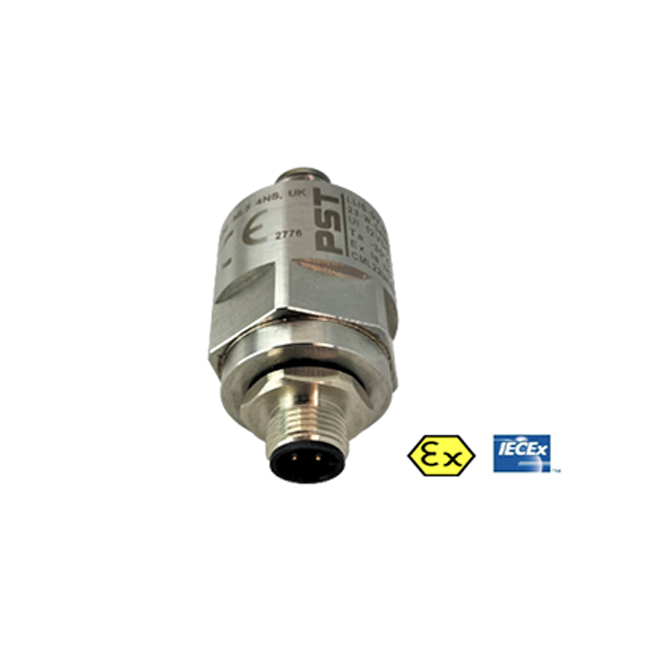

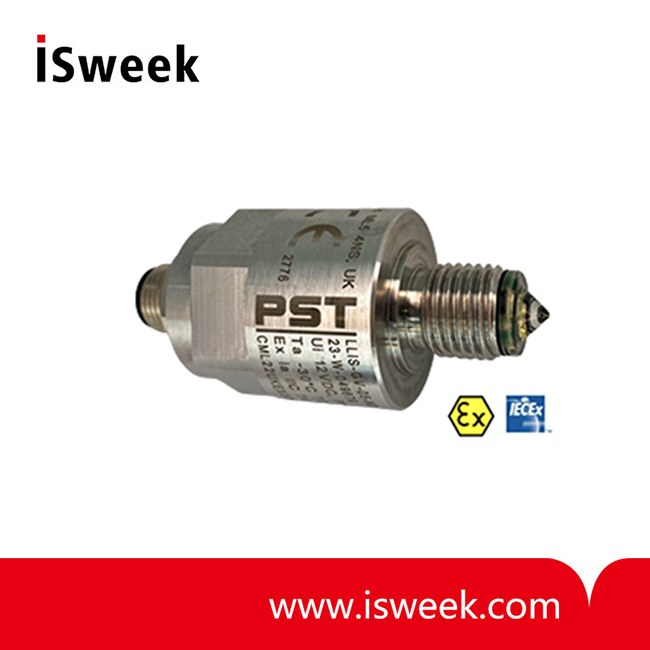

Liquid Level Switches Sensor Optical - LLIS
ATEX, UKCA and IECEx certified
Ambient and liquid temperature – 30 °C…+80 °C (-22 °F…+176 °F)

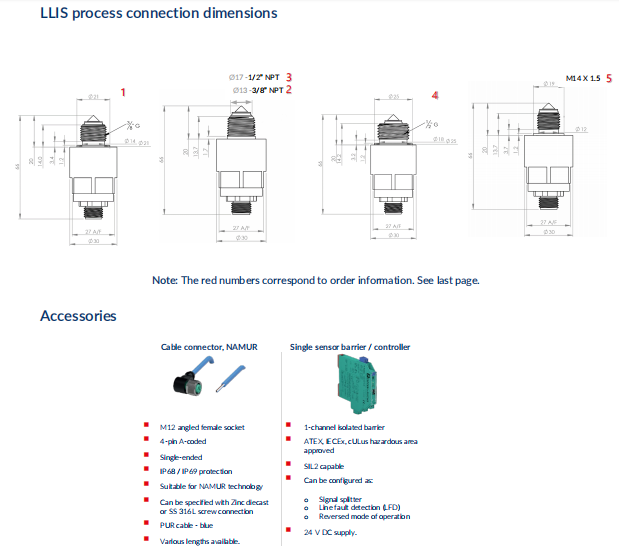

Metric and imperial process connection options
NAMUR output
- Model Number: LLIS
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom

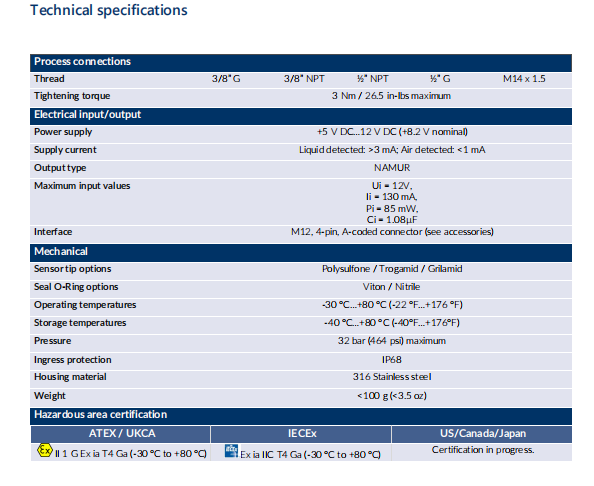

Product Specification
Liquid Level Switches Sensor Optical?LLIS：
Intrinsically safe for hazardous areas
Hazardous area approved, PST’s range of intrinsically safe optical liquid level switches are designed and certified for use?in demanding applications where direct contact with hydrocarbons, fuels, and flammable or explosive liquids is likely.Using infrared technology and the principle of total internal reflection, our liquid level switches detect the presence or?absence of most liquids. An almost instantaneous response time is standard, and switch point repeatability is +/- 1 mm.
PST liquid level switches have an operating temperature range between -30 °C and +80 °C (-22°F…+176°F). Stainless?steel housing and a choice of sensing tip materials ensure they are extremely robust and resistant to chemical attack.
Liquid Level Switches Sensor Optical?LLIS?Highlights：
- ATEX, UKCA and IECEx certified
- Ambient and liquid temperature – 30 °C…+80 °C?(-22 °F…+176 °F)
- Metric and imperial process connection options
- NAMUR output
- Speed of response from the optical sensor is almost instantaneous
- No calibration required
- 316 stainless steel housing
Liquid Level Switches Sensor Optical?LLIS?Applications：
- Presence or absence of any liquid
- Petrochemicals / Oil and gas
- Heavy -duty automotive
- Leak detection
- Hydraulic reservoirs
- Tank / container level-control
- Downstream analyzer protection.
