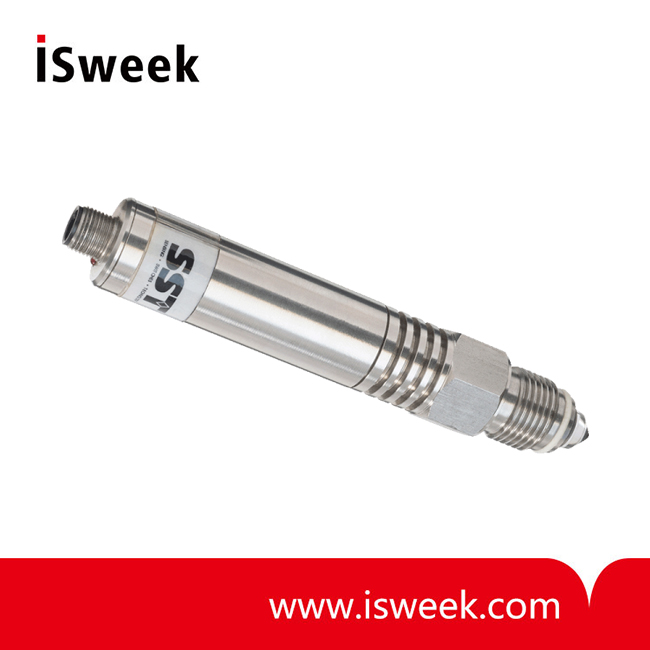

LLHT Glass Tip Range of Liquid Level Switches - LLHT Series
? Liquid level switches that can detect almost any liquid type; oil or water based
? Suitable for harsh environments; robust Stainless Steel housing and crystal glass tip
? Choice of terminal connections
- Model Number: LLHT Series
- Data Sheet:
- Quantity:
- - +
Product Specification
FEATURES
? Liquid level switches that can detect almost any liquid type; oil or water based
? Suitable for harsh environments; robust Stainless Steel housing and crystal glass tip
? Choice of terminal connections
BENEFITS
? Suitable for use within aggressive environments
? Extreme temperatures
? LED output indication
TECHNICAL SPECIFICATIONS
|
Supply voltage (Vs) |
12VDC to 30VDC |
|
Supply current (ls) |
25mA max. |
|
Output sink and source current (lout) |
200mA max. |
|
Operating temperatures |
LLHT187: -25℃ to +100℃ LLHT287: -25℃ to +140℃ |
|
Storage temperatures |
-25℃ to +80℃ |
|
Housing material |
Stainless Steel with Simax crystal glass tipa |
|
Sensor termination |
M12 Brad Harrison connector or PUR 3x0.25mm2, 2m cable |

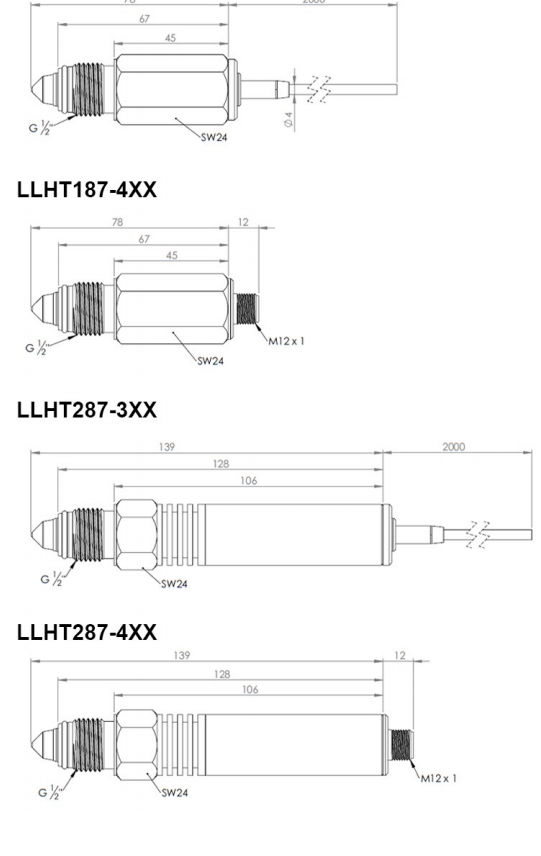

OUTLINE DRAWING
All dimensions shown in mm. Tolerances = ±1mm.
