Low Power Consumption Combustible Gas Sensor - MQ-D1

Product Specification

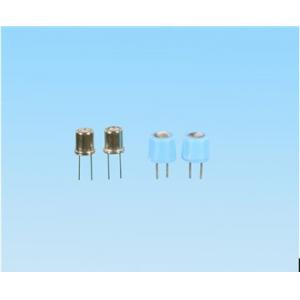

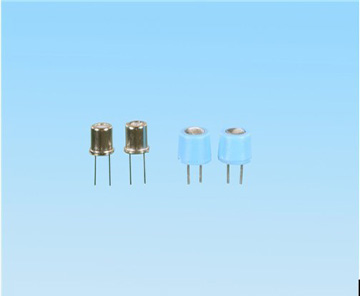

Low Power Consumption Combustible Gas Sensor MQ-D1

Specification:

MQ-D1 type semiconductor combustible gas sensor is mainly used in natural gas, coal gas, LP gas, and smoke etc leak detection, monitoring, alarm and intelligent concentrated gas leakage, using advanced flat production process, from the heater and micro- Al2O3 forming a metal oxide semiconductor material constituting the ceramic substrate , with the electrode wire leads, encapsulated in a metal tube housing, cap . When detecting the presence of gas, the gas concentration in air is higher, the higher the conductivity sensor; Using a simple circuit that can change the conductivity of the gas is converted to an output signal corresponding to the concentration.

Character:

1. High sensitivity to Methane

2. Ultra-low power consumption

3. Fast response and resume

4. Good stability and long life

5. Simple drive circuit

6. Small size

Application:

1. Domestic gas leakage detector

2. Industrial gas detector

3. Portable gas detector

Technical Parameter:

Gas: Methane Gas
Detection range: 300 to 10000ppm

Characteristic gas: 5000ppm Methane
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 51Ω
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: <=30mA
Heating voltage: 6V
Measuring voltage: 5～50V
Operating Conditions Ambient temperature: -20～+55℃
                         Humidity: ≤ 95% RH
                         Environmental oxygen content: 21%
Storage conditions Temperature: -20～+70℃

                           Humidity: ≤ 70% RH
