Product Specification

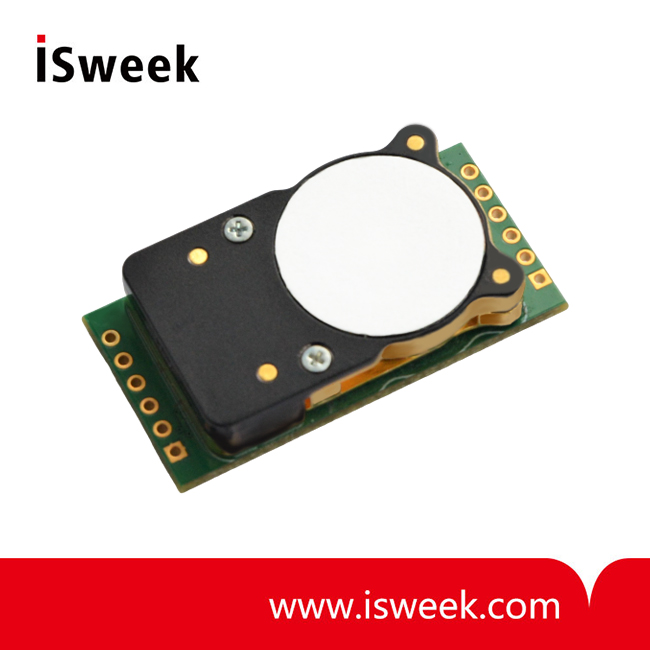

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Description：

The CozIR?-LP3 CO? sensor uses proprietary solid-state LED technology to achieve unrivalled low-power consumption, making it suitable for a range of applications including battery-powered and wirelessly connected devices.

The CozIR?-LP3 provides the user with extensive flexibility, a choice of UART or I2C control interfaces, digital and analogue CO? measurements, and a fail-safe digital alarm level monitor.

The CozIR?-LP3 includes on-board power management, allowing the user to control sensor power consumption during measurements and when the sensor is inactive. The user can reduce active current consumption to <1μA without switching o the sensor.

The low height form factor, small footprint and flexible mounting options make the CozIR?-LP3 ideal for applications where space is at a premium.

The CozIR?-LP3 is designed to run fully autonomously with automatic self-checking and auto-zeroing, enabling the sensor to operate for long periods with no user intervention.

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Features：

? Ultra-low-power CO?sensor, <3.5mW average

? 30ppm (typ.) measurement accuracy

? Solid state LED optical technology

? UART or I2C control and data interface

? Analogue and digital CO?measurement outputs

? On-board power management, <3μW quiescent

? User programmable CO?level alarm

? Built-in auto-zero function

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Applications：

? Indoor Air Quality (IAQ)

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor Specifications：
