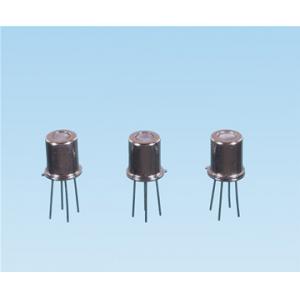

Methane Sensor CH4 Sensor for Air Pollution Detection - MQ-D2
MQ-D2 is a methan CH4 sensor which is used in air pollution detection.
- Model Number: MQ-D2
- Quantity:
- - +
Product Specification
Methane Sensor CH4 Sensor for Air Pollution Detection MQ-D2
?
Specification:
MQ-D2 type semiconductor combustible gas sensor mainly monitor smoke and other harmful gases in contaminated areas, such as ammonia, sulfur, and benzene series steam etc; using advanced flat production process, from the heater and micro- Al2O3 forming a metal oxide semiconductor material constituting the ceramic substrate , with the electrode wire leads, encapsulated in a metal tube housing, cap . When detecting the presence of gas, the gas concentration in air is higher, the higher the conductivity sensor; Using a simple circuit that can change the conductivity of the gas is converted to an output signal corresponding to the concentration.
?
Character:??????????????????????????????????????????
1. High?sensitivity?to?Methane??????
2. Low power consumption????????????????????????
3. Fast?response?and?resume
4. Good?stability?and?long?life????????????????????????
5. Simple?drive?circuit
6. Small size
?
Application:
1. Domestic gas leakage detector
2. Industrial gas detector
3. Portable gas detector
?
Technical Parameter:
Gas: Methane Gas
Detection range: 300 to 10000ppm
Characteristic gas: 5000ppm Methane
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 1~50Ω adjustable
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: <=80mA
Heating voltage: 5V
Measuring voltage: 5~50V
Operating Conditions Ambient temperature: -20~+55℃
???????????????????????? Humidity: ≤ 95% RH
???????????????????????? Environmental oxygen content: 21%
Storage conditions Temperature: -20~+70℃?
??????????????????????? ???Humidity: ≤ 70% RH
?
