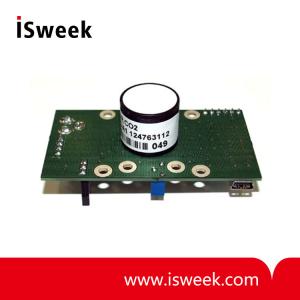

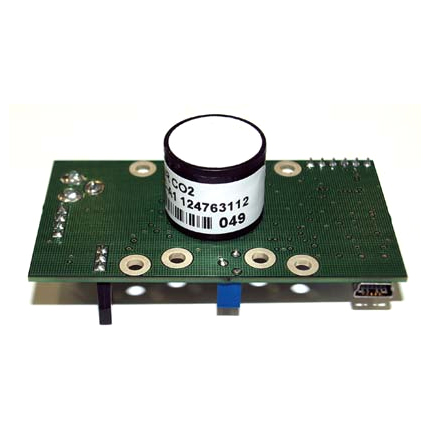

NDIR Carbon Dioxide (CO2) Transmitter Board - IRC-TX
? Both 4-20mA and USB output
? Uses Alphasense IRC-A1 NDIR cell
? Adjustable bulb voltage to optimise long-term stability vs. resolution?
- Model Number: IRC-TX
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
IRC-TX NDIR CO2 Transmitter Board Features
? Both 4-20mA and USB output
? Uses Alphasense IRC-A1 NDIR cell
? Adjustable bulb voltage to optimise long-term stability vs. resolution
IRC-TX NDIR CO2 Transmitter Board Specifications
|
Four ranges |
0-5,000ppm 0-5% vol CO2 0-20% vol CO2 0-100% vol CO2 |
| Please specify required range when ordering | |
|
|
|
|
Excellent linearity/accuracy |
±50ppm from 5,000ppm at 20℃ using generic linearisation |
|
Full sensor specification |
see IRC-A1 data sheet |
|
|
|
|
USB interface |
plugs directly into PC for simple data capture |
|
4-20mA output |
4-wire or 2-wire and separate power supply (2.1mm DC socket) |
|
|
|
|
Power options |
USB port (4-20mA output switched off) 2.1mm DC socket 7 to 40VDC Molex connector 7 to 40VDC |
